Click on thumbnails below for larger pics....





Who is Alfa Romeo? This history on the Alfa Romeo website and Wikipedia article provide a little bit of insight....Enzo Ferrari started his racing career with Alfa Romeo. The history of the Alfa Romeo crest/badge can be found HERE.

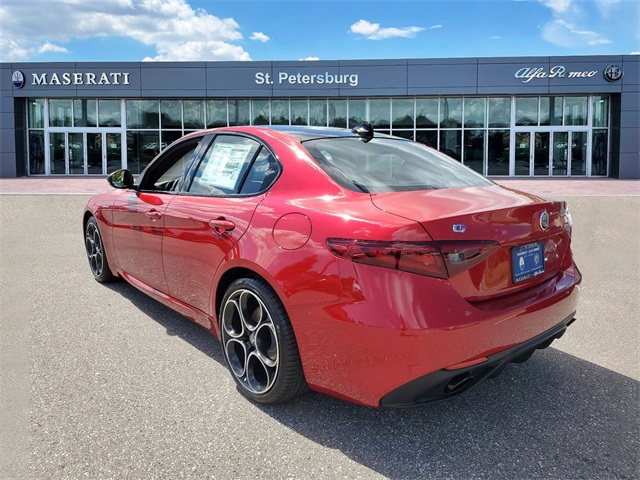

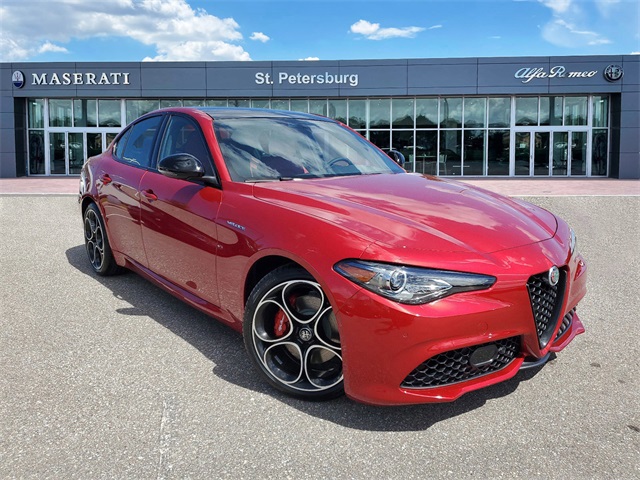

This 2022 Alfa Romeo Giulia Veloce was purchased from Alfa Romeo of St. Petersburg- they seemed to be great providing information and organizing the deal prior to and during our visit to pickup the car.
But, several post sale issues came up that were handled poorly or not at all, I would not recommend this dealership. You can find the FL state auto dealer complaint form HERE.

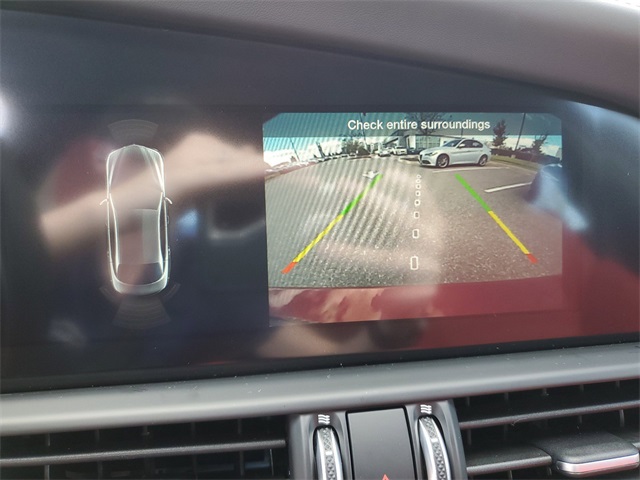

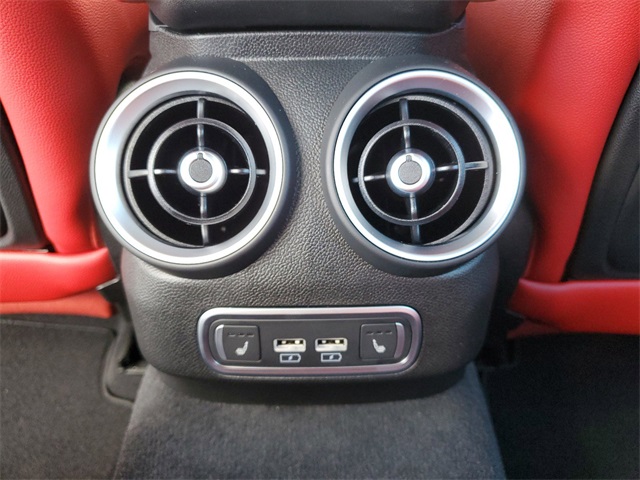

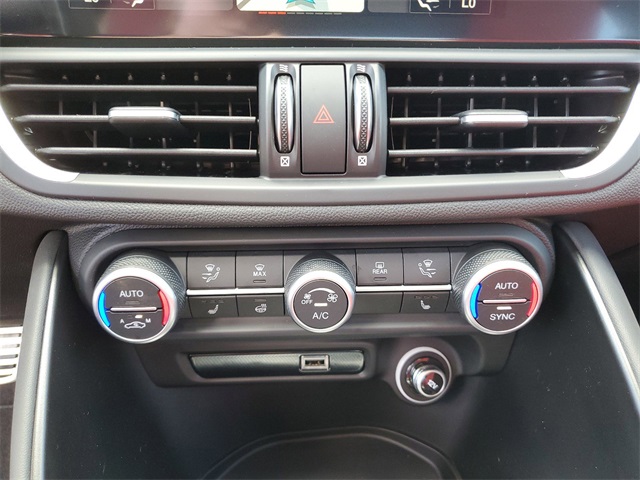

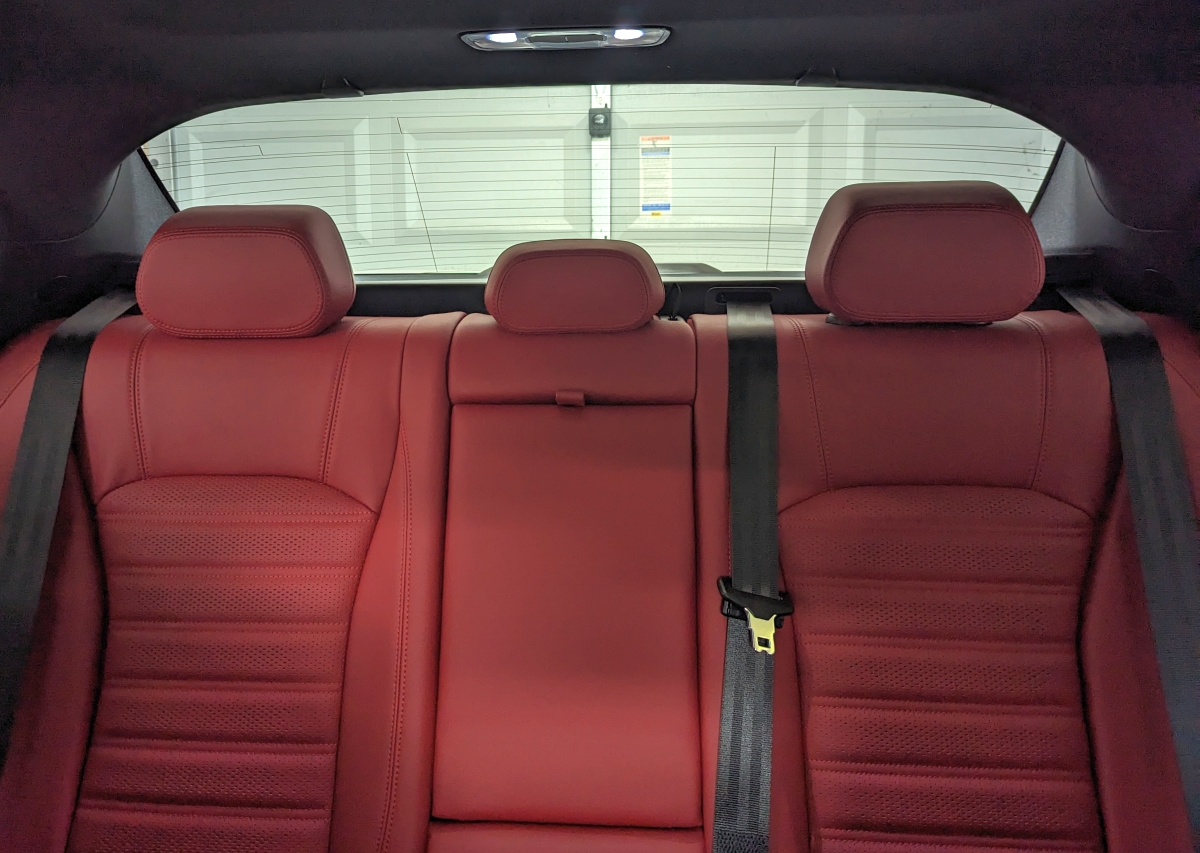

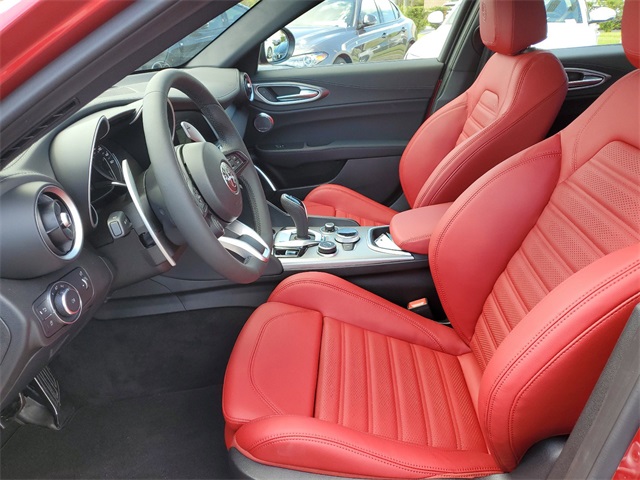

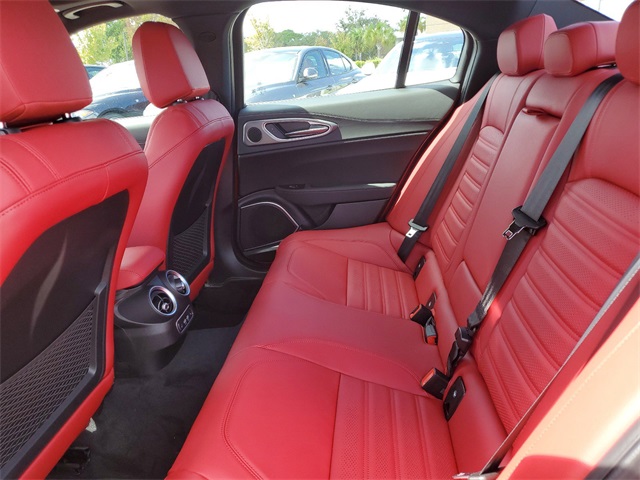

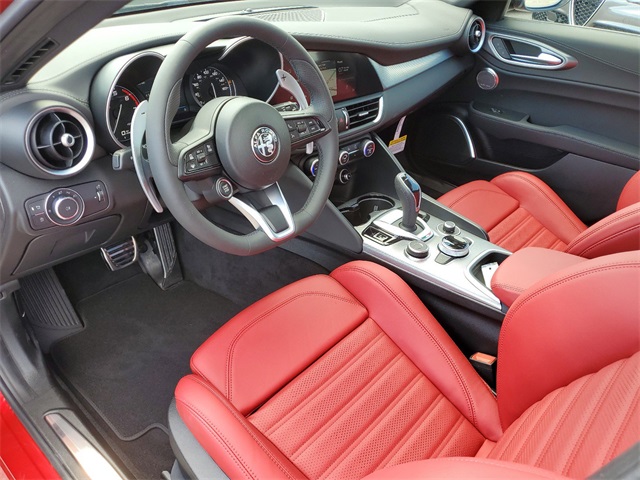

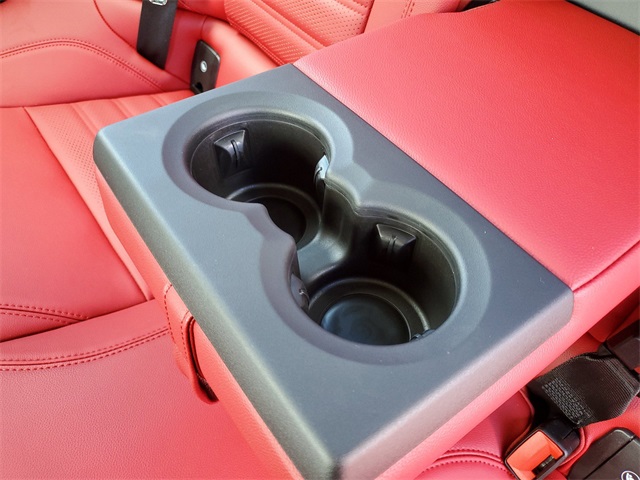

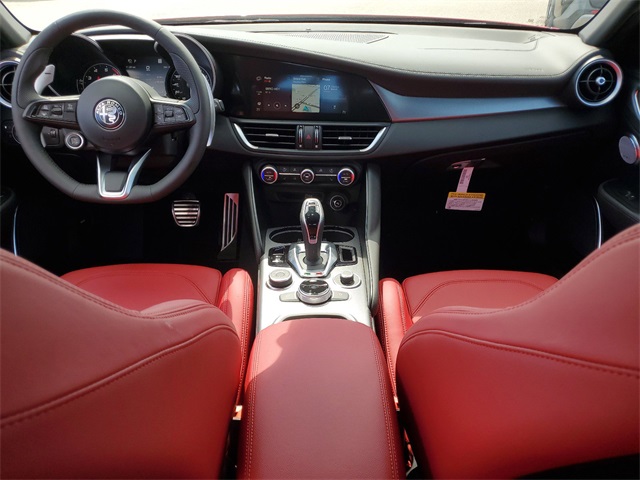

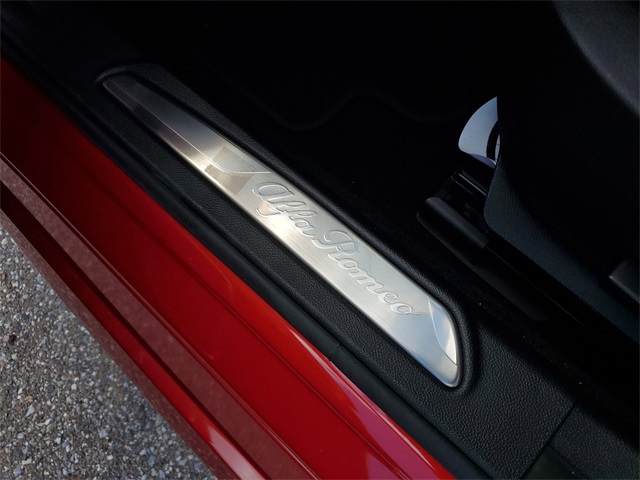

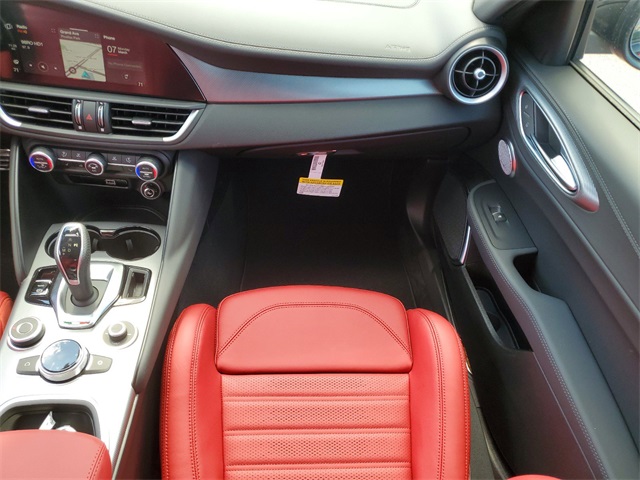

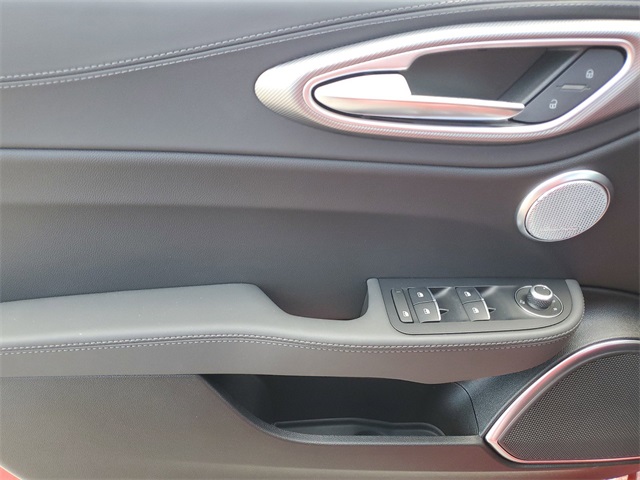

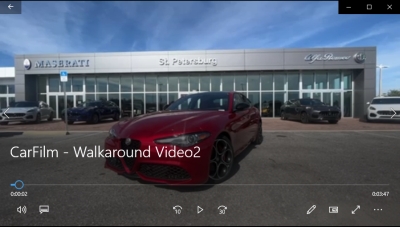

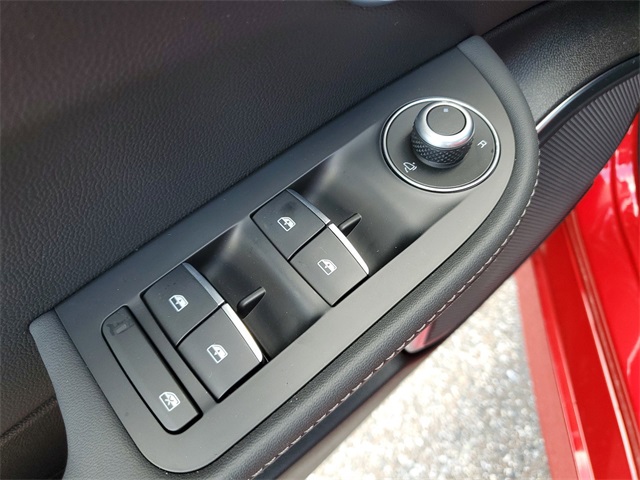

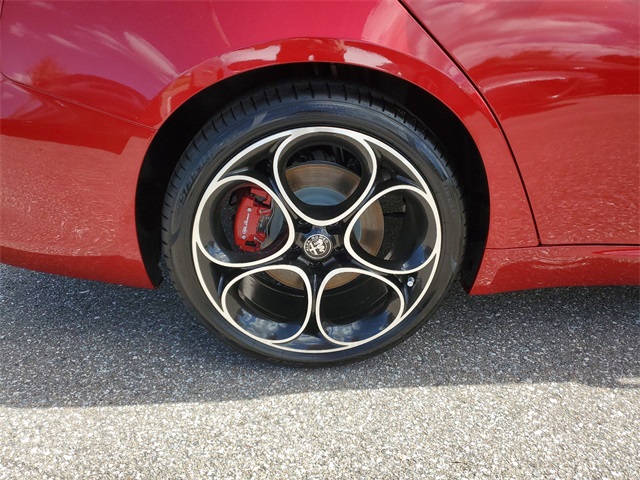

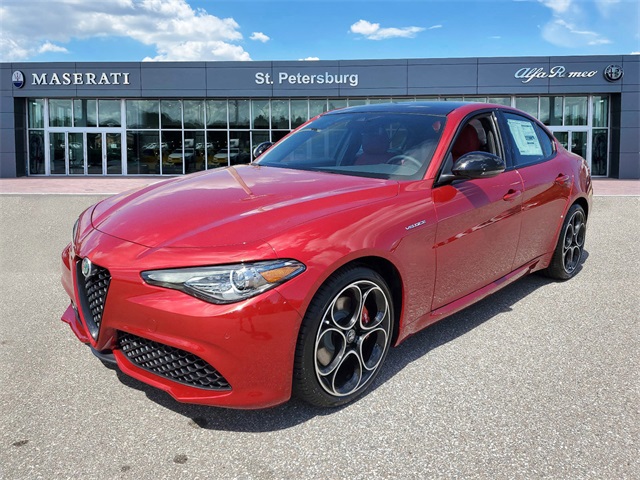

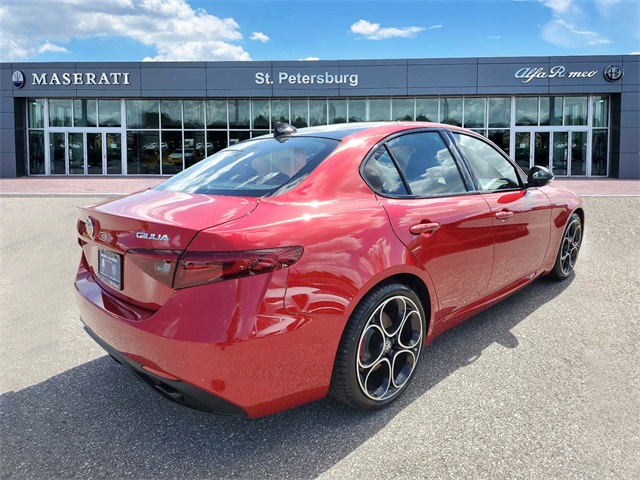

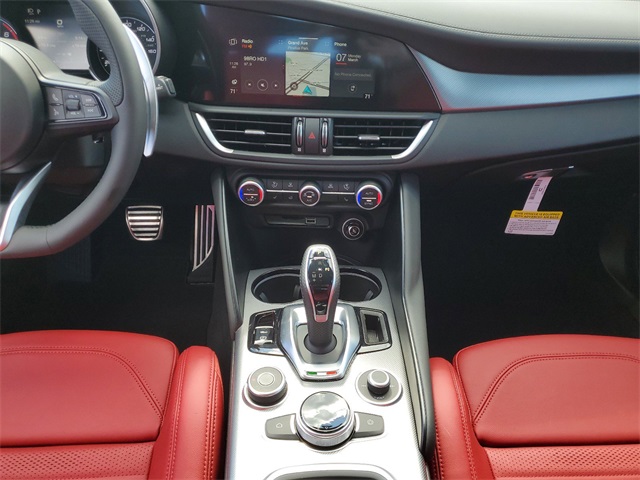

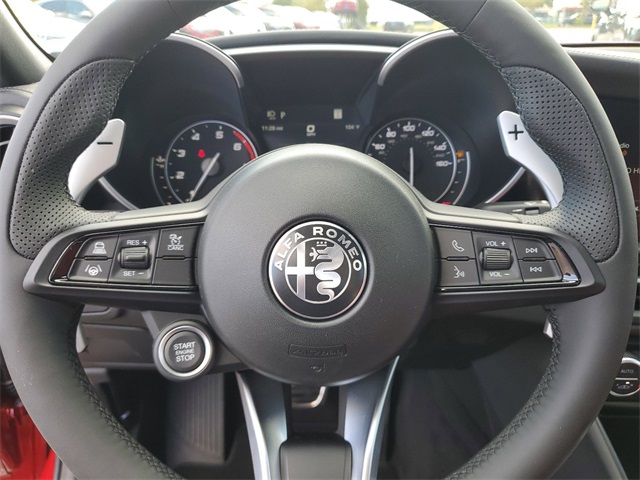

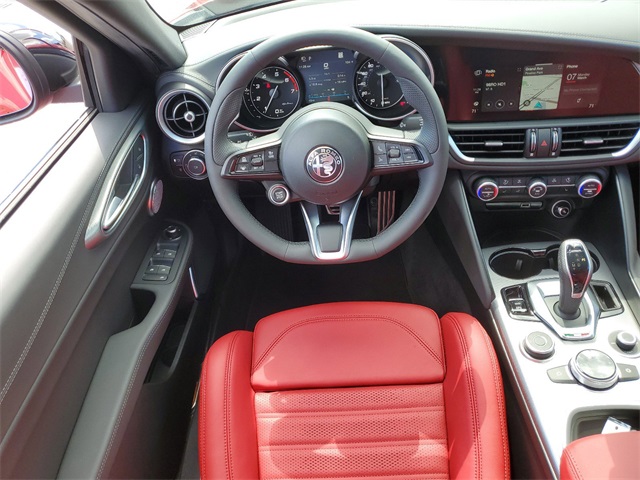

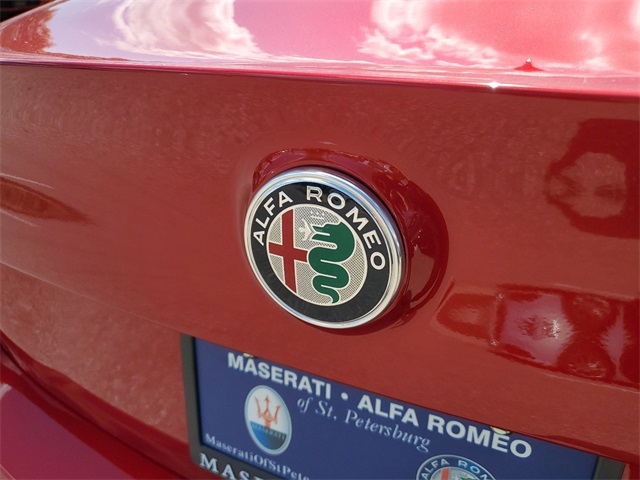

Pics below are from the dealership ad and they were nice enough to send me some video as well.
The new Veloce trim package replaces last years Ti Sport package.

Window Sticker HERE, Build Sheet HERE, Dealer AD HERE.

ALFA (Anonima Lombarda Fabbrica Automobili, English: Lombard Automobile Factory, Public Company)

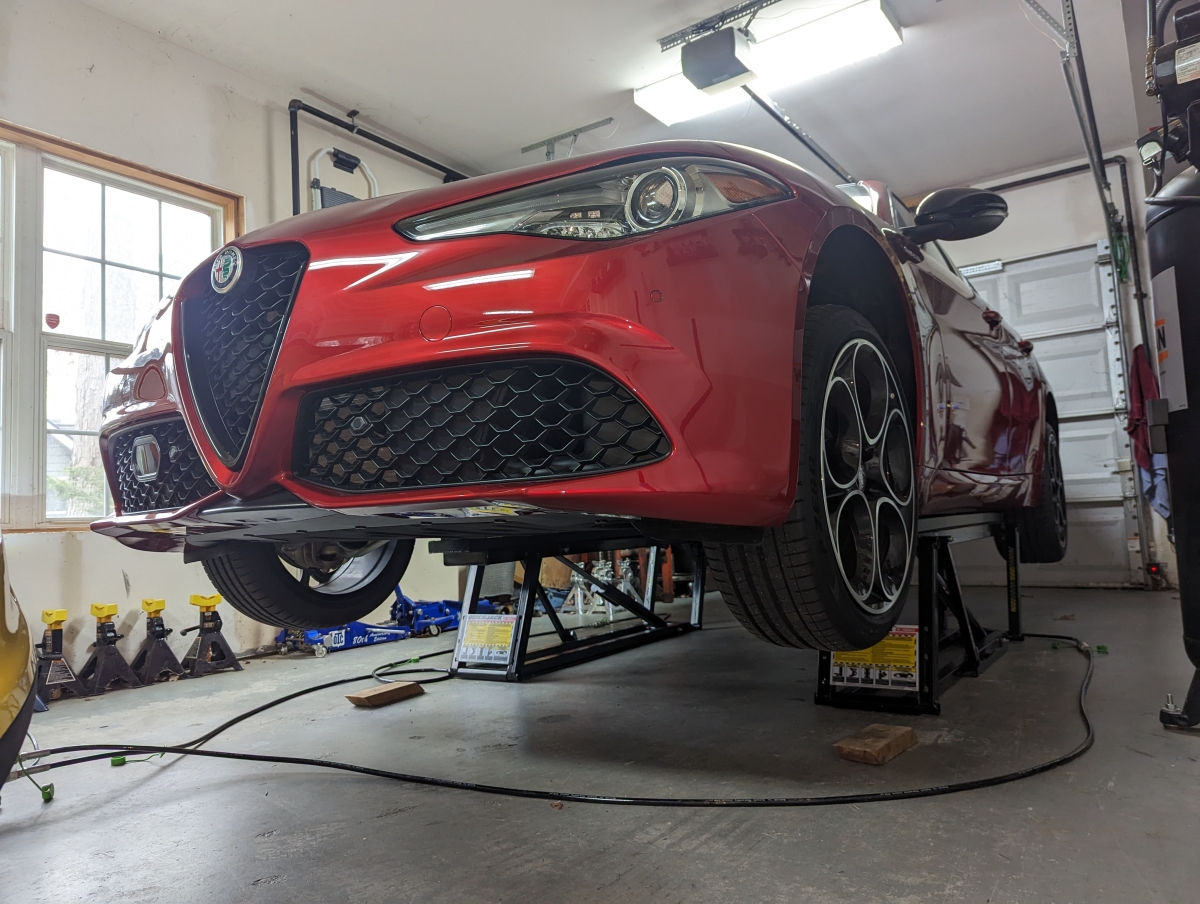

Maybe the first thing I bought for both the Stelvio and Giulia was the Park Release Tool from Centerline. Leave it in the trunk just in case I need to use it, instructions HERE and HERE.
Alternatively there are several DIY tools out there, an example from the Giulia Forum.



Alfa Romeo did not give us an AGM battery so I decided to proactively purchase and install an AGM battery-
An Odyssey ODP-AGM49 H8 L5 from FCP Euro with their LIFETIME guarantee (Odyssey specifications HERE), Also available from Amazon.

Owner's Manual HERE, Technical Manual HERE, Ultimizer Charger Manual HERE, Warranty Information HERE.

Videos that show how these batteries are made HERE and HERE.

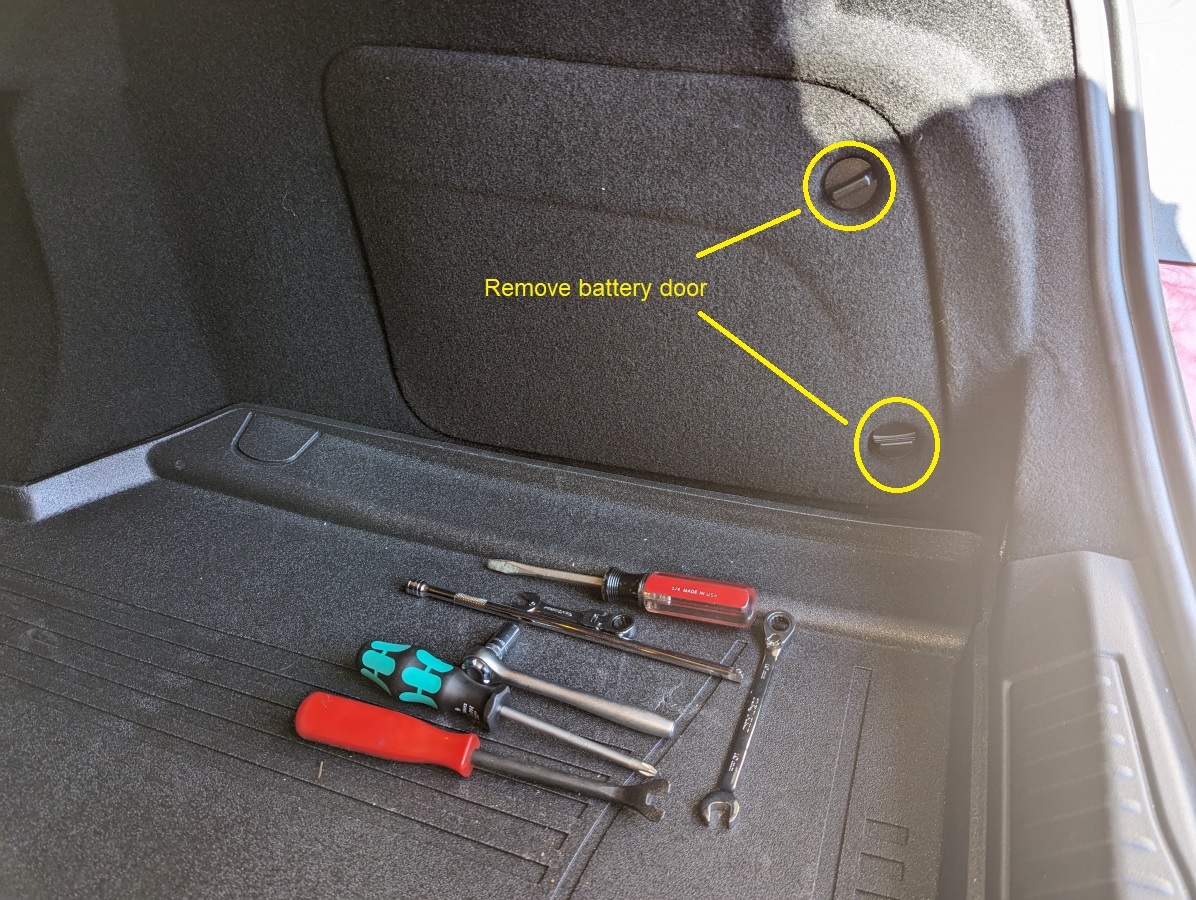

I found a good Giulia battery replacement DIY video. This is one of the things that was easier in the Stelvio due to battery placement, Stelvio Battery Replacement DIY Guide HERE with some additional pics. Unlike the retainer in the video my Giulia had a short 10mm bolt at the base retainer, impossible to see without removing the plastic trim retainer and gently pulling the trim/liner away from the trunk to look through as you position your hand/tools through the battery door opening.

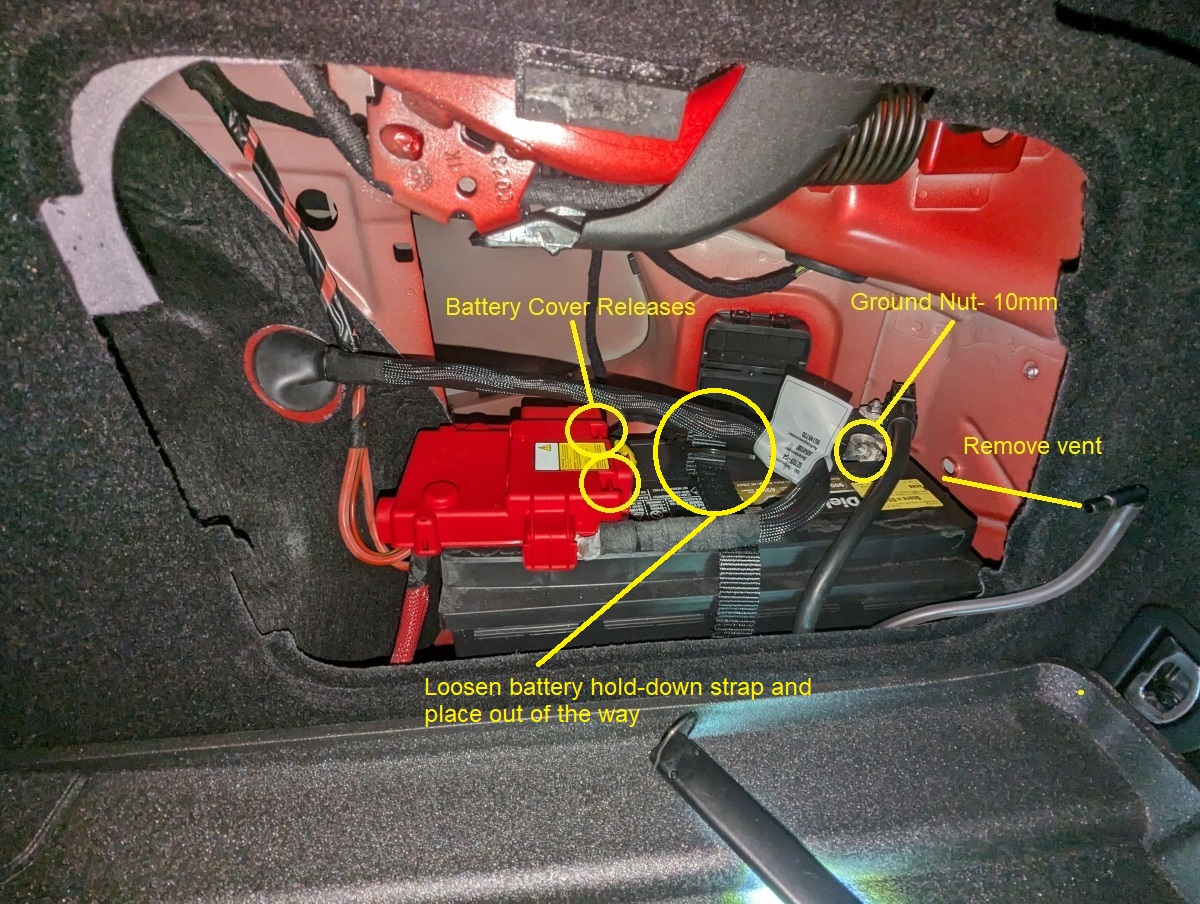

-Next, I removed the vent tube,
-loosened the 10mm nut for the ground terminal and removed the ground terminal/IBS assembly carefully,
-removed the positive terminal cover by depressing two releases and pulling up,

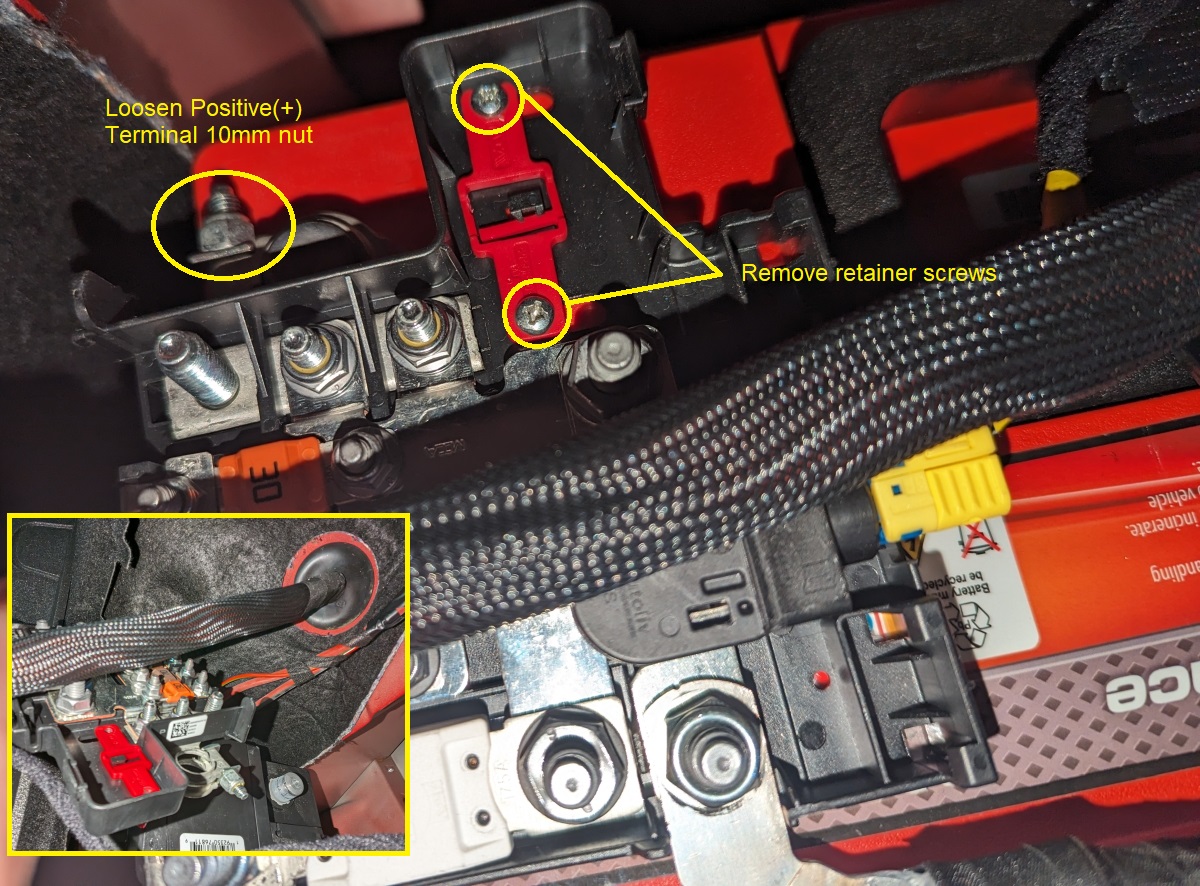

-loosened the 10mm nut for the positive terminal AND removed the two Phillips head screws on the red retainer (this works like sheetrock anchors to hold the positive electronics to the battery) which should allow the positive terminal to be pulled free,

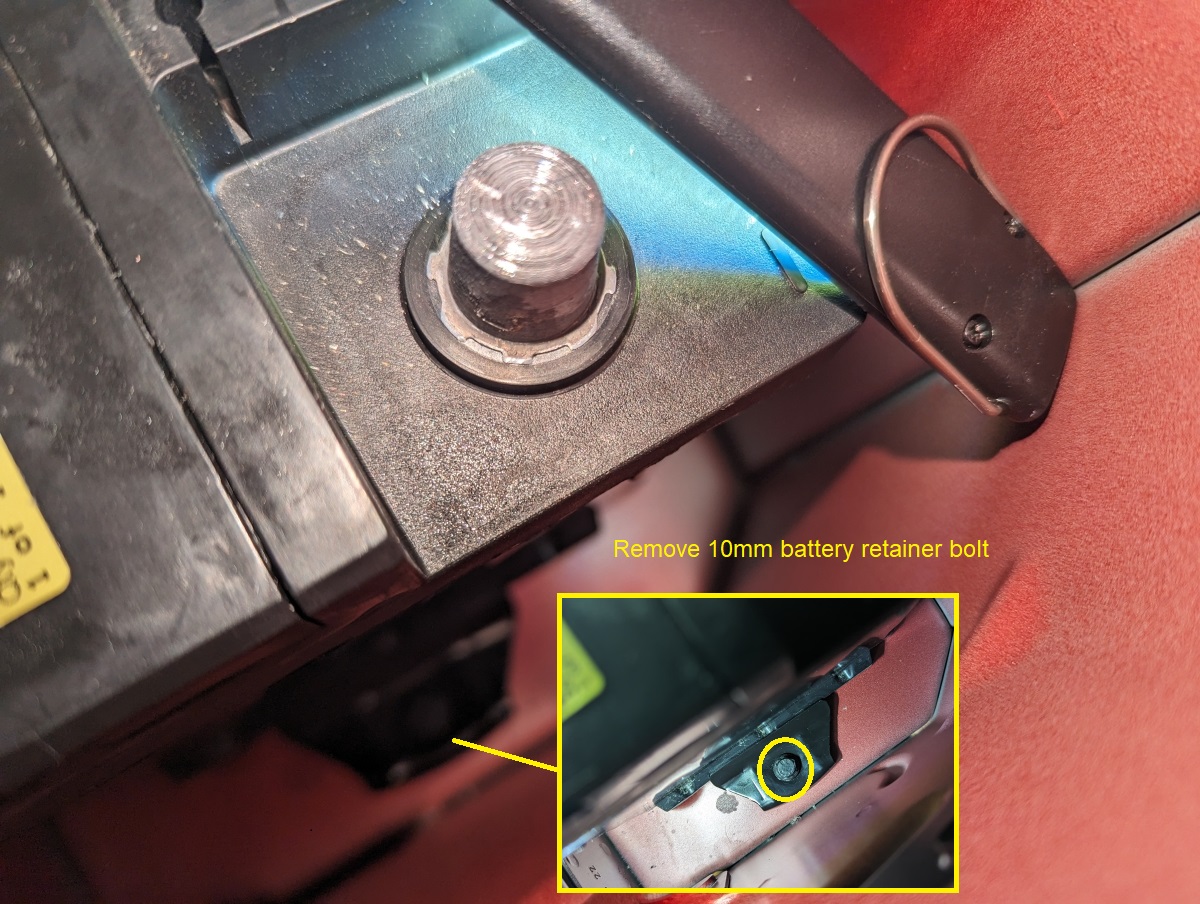

-removed the 10mm nut on the mounting plate at back/base of the battery (see note above about trim).

To remove and install the replacement battery, it helps to have another set of hands to hold the wiring out of the way. When installing, it is also helpful to hold the vent tube out of the way as the battery is put into place, careful to slide the battery for the front to go under the fixed side battery mount.
-Next, bolt rear mounting plate in place,
-reinstall the positive terminal tighten the terminal nut and screws for the red retainer,
-install positive terminal cover,
-install vent tube,
-install ground terminal/IBS assembly and tighten nut,
-reassemble any interior cover pieces for battery
DONE.

Additional items purchased were:
Schumacher BAF-B1 Battery Terminal Cleaning Brush to clean both the post and terminal,
Permatex 22058 Dielectric Tune-Up Grease applied to all surface areas of both -/+ posts before reinstalling terminals to prevent corrosion,

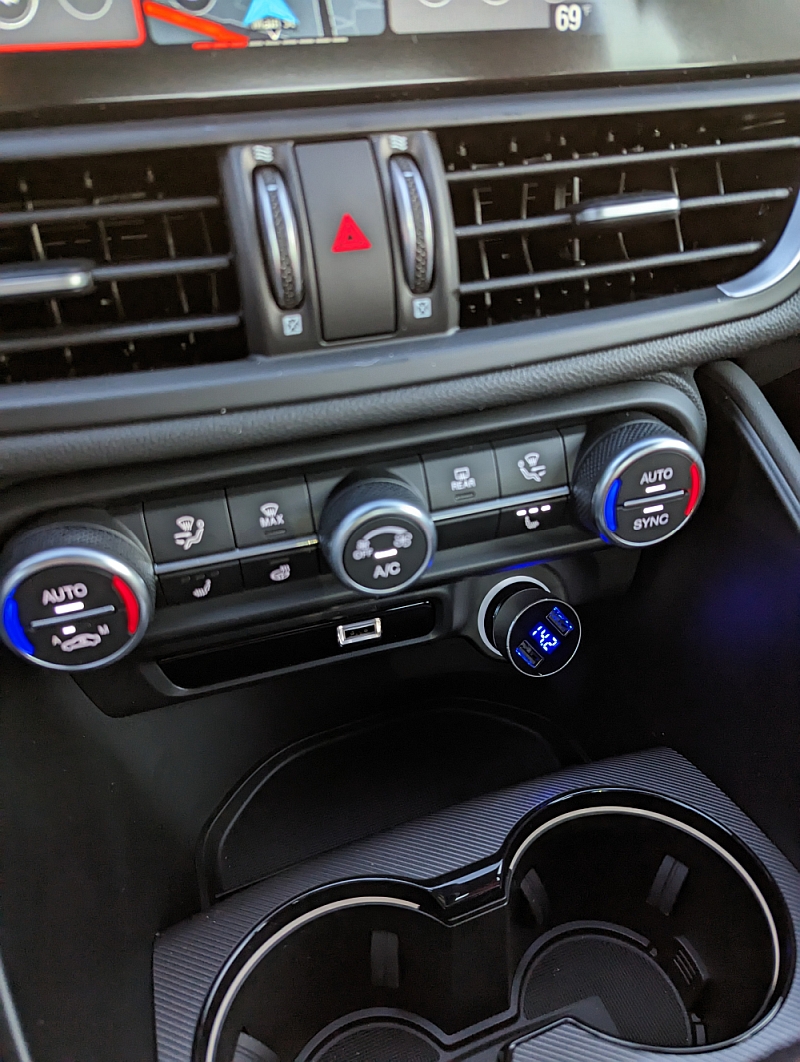

Dual USB Car Charger,4.8A Output,Cigarette Lighter Voltage Meter to monitor battery voltage, required specific positioning so I could read the voltage but works well

Some additional information on Alfa Romeo IBS (aka, Intelligent Battery Sensor) can be found in this thread HERE and PDF doc HERE

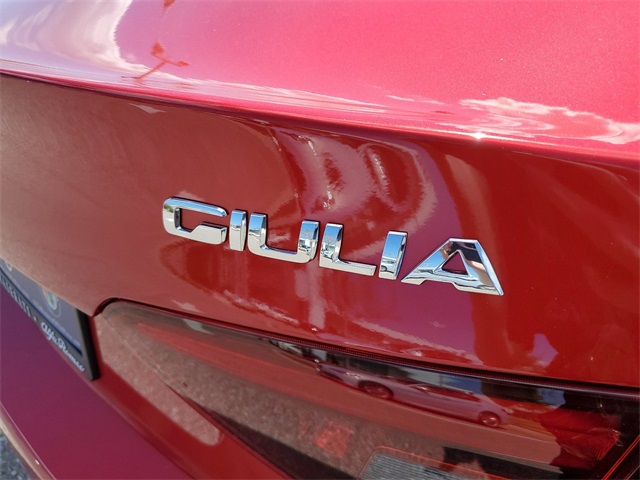

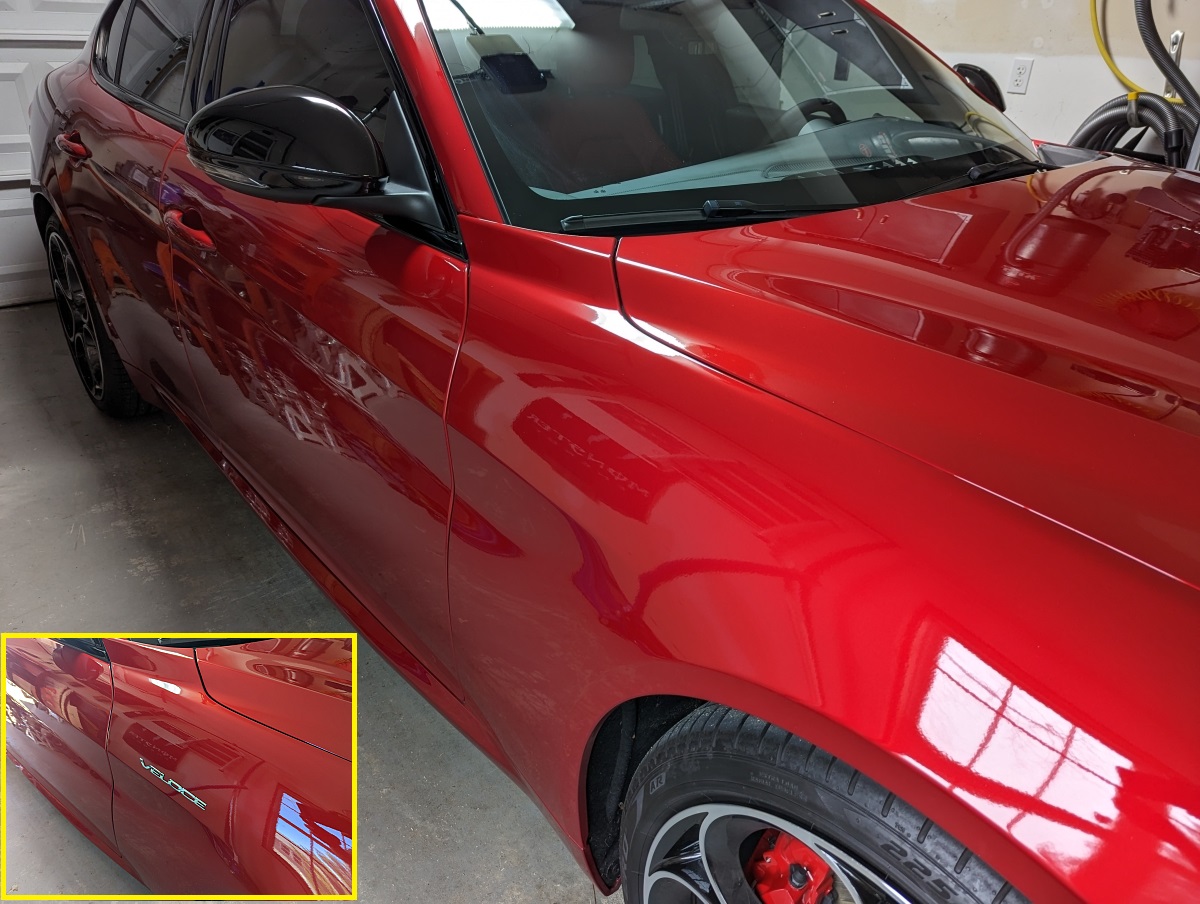

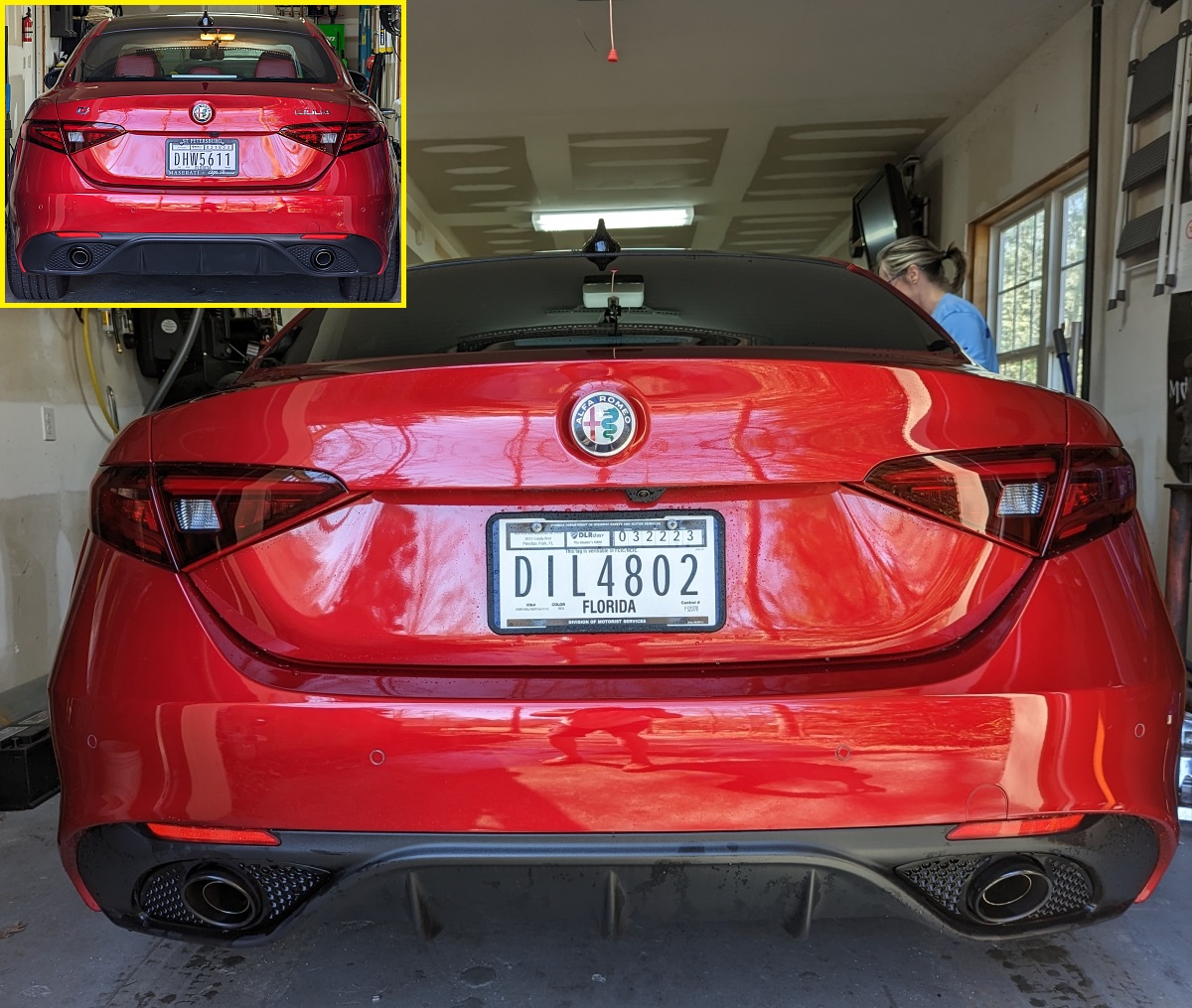

Prior to taking my car in for PPF, I decided to remove the emblems, I think debadged is cleaner looking. Park the car in the sun and/or use a hair dryer to warm the double sided tape/adhesive. You can then use fishing line/dental floss OR a plastic trim removal tool to carefully remove the emblems. Typically there is some tape/adhesive left behind, I use a pinstripe removal tool with a drill to get the worst of it off and then follow that with WD40, not a great lubricant but great for fishing and adhesive removal. Next, throughly wash the area with soap and water to remove the WD40, dry, and wax.



Xpel Ultimate Plus Paint Protection Film (VIDEO) on the bumper/front fenders/mirrors/door handles/windshield trim installed at Sun&Shield Automotive Films, my go-to guys for paint protection. I would post pictures but you can't see it

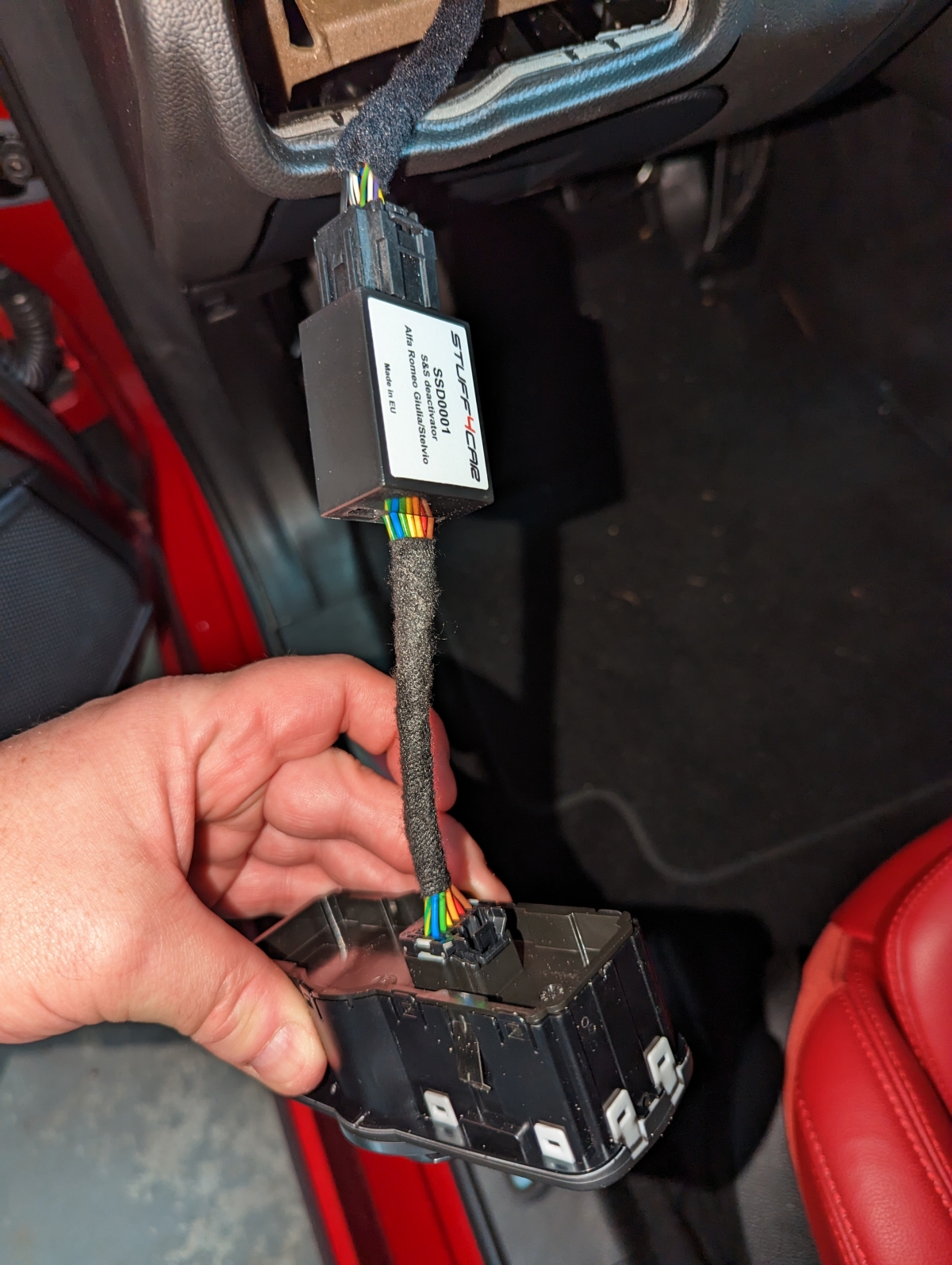

Ordered and installed Stuff4Car Start Stop Deactivator, shipping was quick and they are very responsive to questions.
Installation Instructions HERE and Installation Video HERE.

Forum thread HERE for alternative method of achieving this.

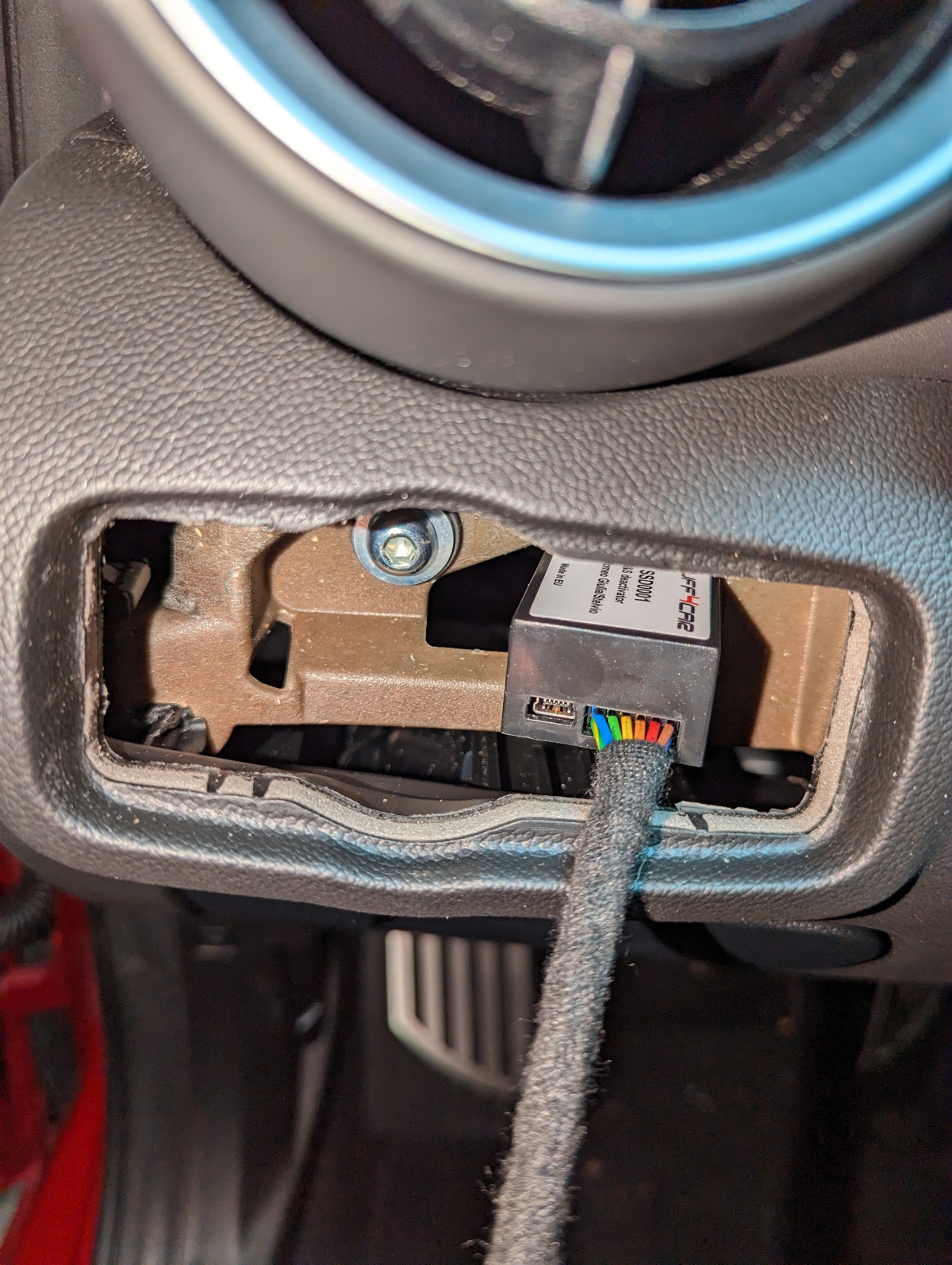

Ordered Security Gateway (SGW) bypass for FCA cars built dates 2017+ and Dual set of Security Gateway harness extensions for FCA cars (two 12 pin and two 8 pin extensions) 45cm/18" from Stuff4Car. More info on SGW HERE.
Stuff4Car installation instructions HERE (forum intro HERE) that includes some forum discussion on installation, EuroCompulsion instructions HERE, some forum discussion on accessing 2020+ SGW HERE, HERE, and HERE.

The point of this? So that I am able to use AlfaOBD OR MultiECUScan to review settings/make updates. It is recommended that the bypass module only be installed when needed and then removed to maintain security from hackers. More on AlfaOBD/MultiECUScan features can be found HERE, HERE (Disable Seatbelt Chime), HERE (Panic Button Disable), and HERE (Proxi Configurations). MultiECUScan Module and Cable cross-reference/key HERE.

I already had the module specific cables but decided to purchase the MES Multiplexed License that included the CANtieCAR Interface (interface support HERE). The interface supports Bluetooth, USB, and WiFi modes and has a built-in multiplexor which allows connection to all vehicle modules without additional cables/adapters. The interface also has a built-in memory card which acts as a USB drive and contains the drivers and software.




NOTE: The following is provided for informational purposes only, user assumes all risks. At least one forum user has had issues as detailed HERE. Most of the forum write-ups are using power/ground into the light/rain sensor (where this user had an issue), same color wires are present in the mirror plug if that seems more desirable....or you might not decide this worth the risk- YMMV.

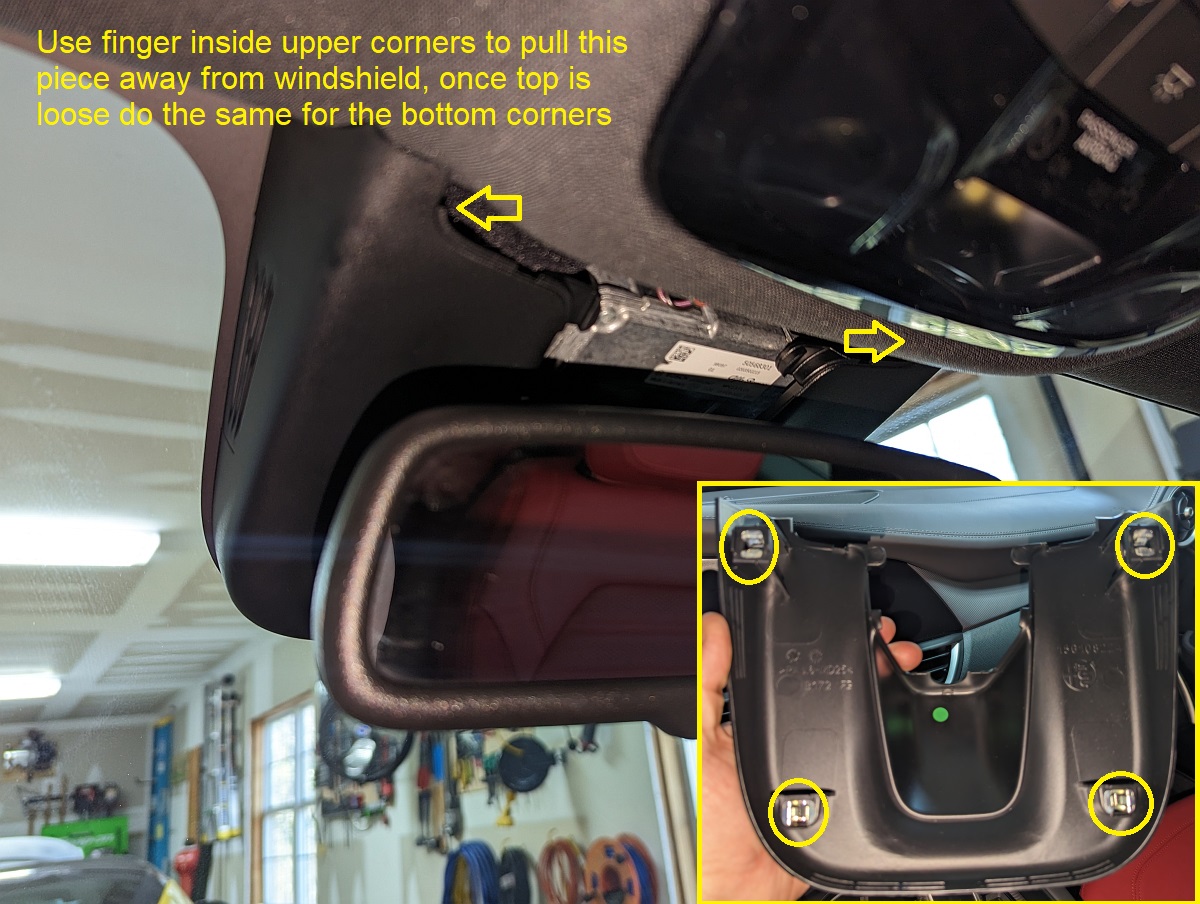

Had already done the same V1 installation in my Stelvio, some minor differences with the Giulia.

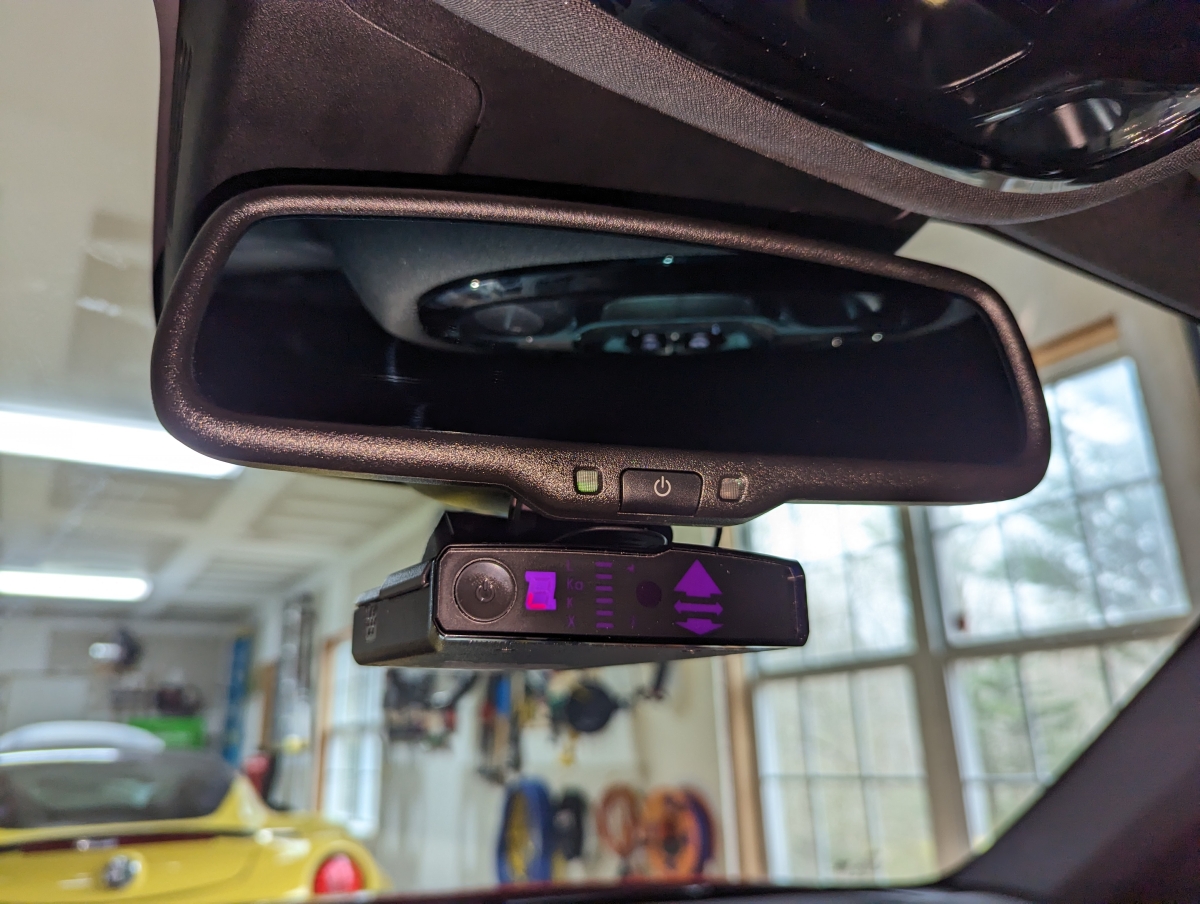

Valentine 1 Gen2 radar detector (Owners Manual, Quick Start Guide, Programming Guide, Troubleshooting, How To Upgrade) hardwire installed using a Xislet Radar Detector Hardwire Power Cord Mirror Plug Tap with Inline Fuse from Amazon, I used the cord with the smallest pins. A good forum thread on how the trim pieces come apart/off to access the mirror plug is HERE.
Using the Bluetooth connection to the V1 from my Android phone with the JBV1 app adds a lot of useful functionality- Some discussion around the JBV1 app can be found HERE, helpful settings guide HERE.

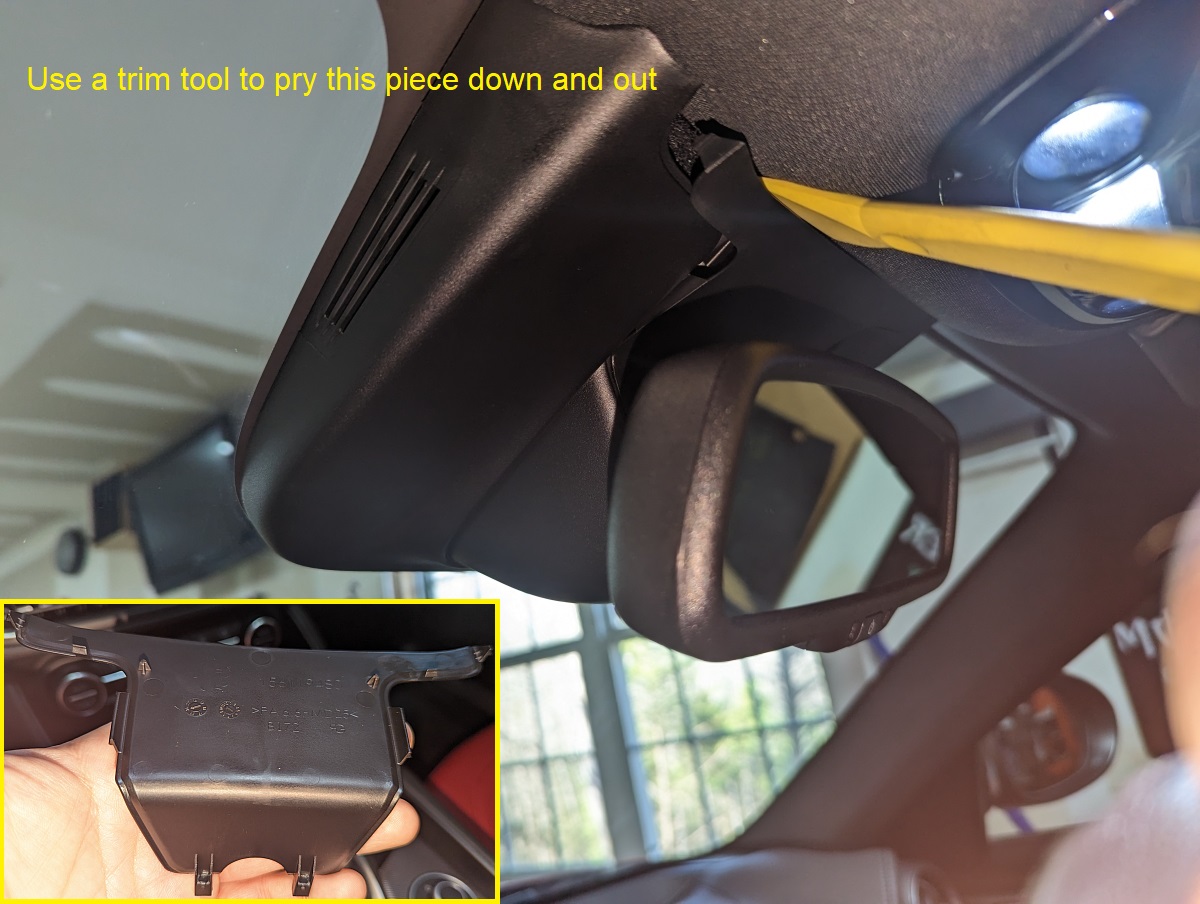

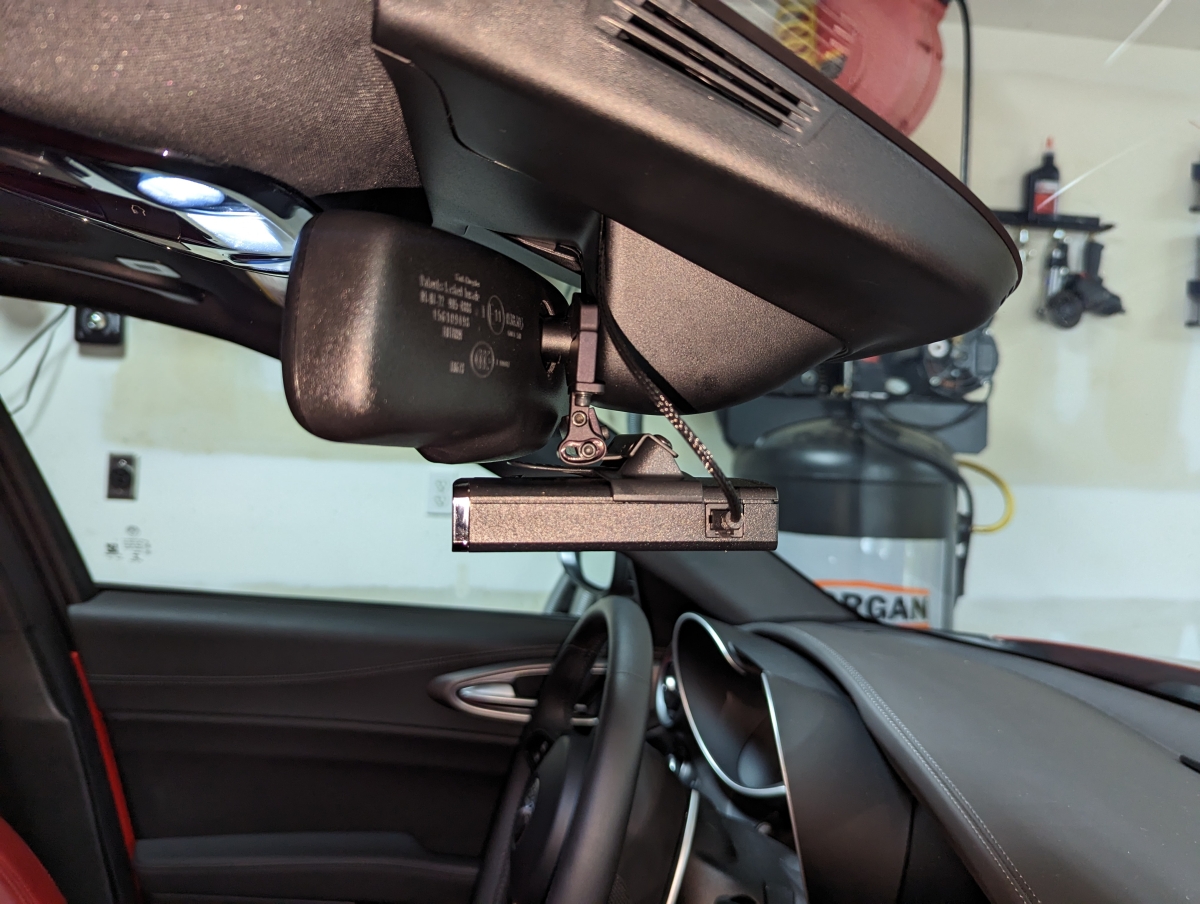

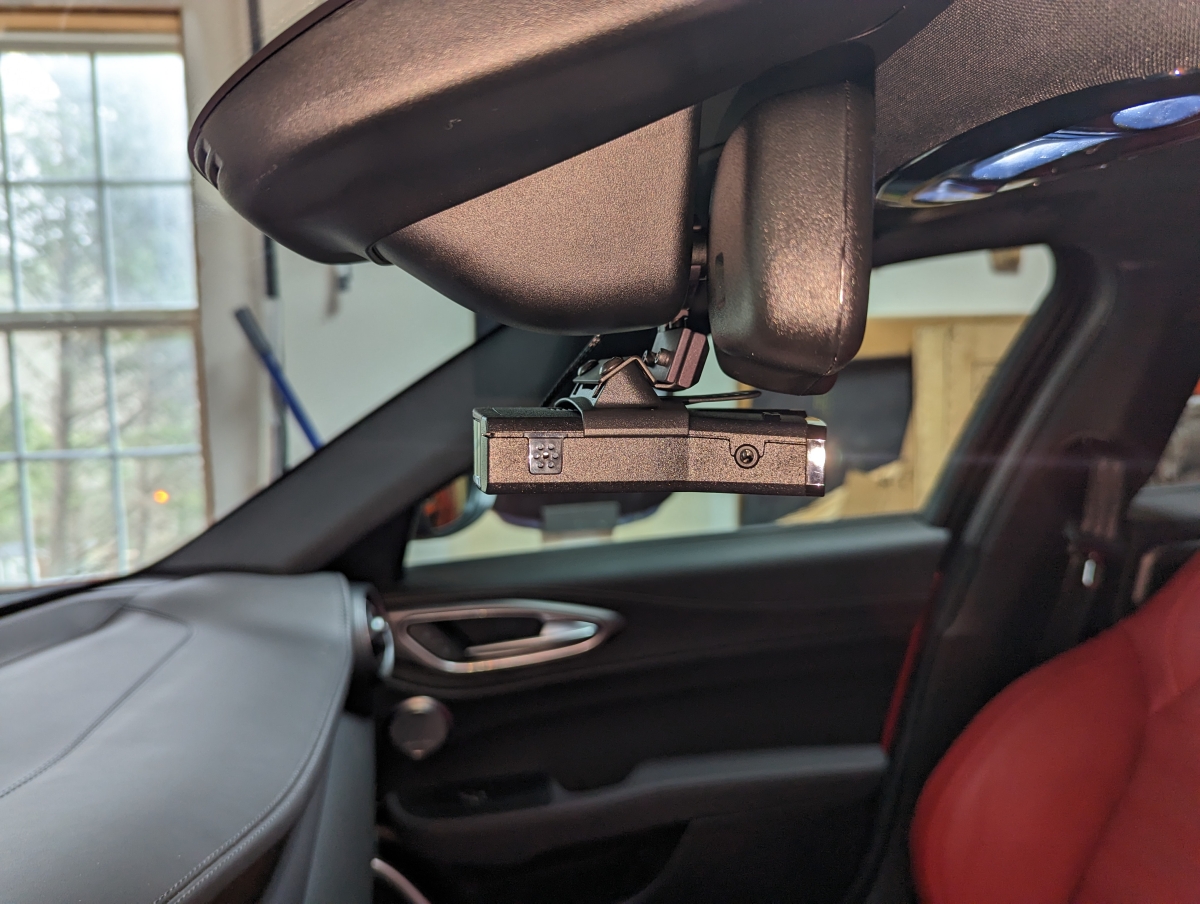

BlendMount (P/N BV1-3030) was ordered and installed (Installation Instructions HERE). Customer Support with BlendMount is AWESOME

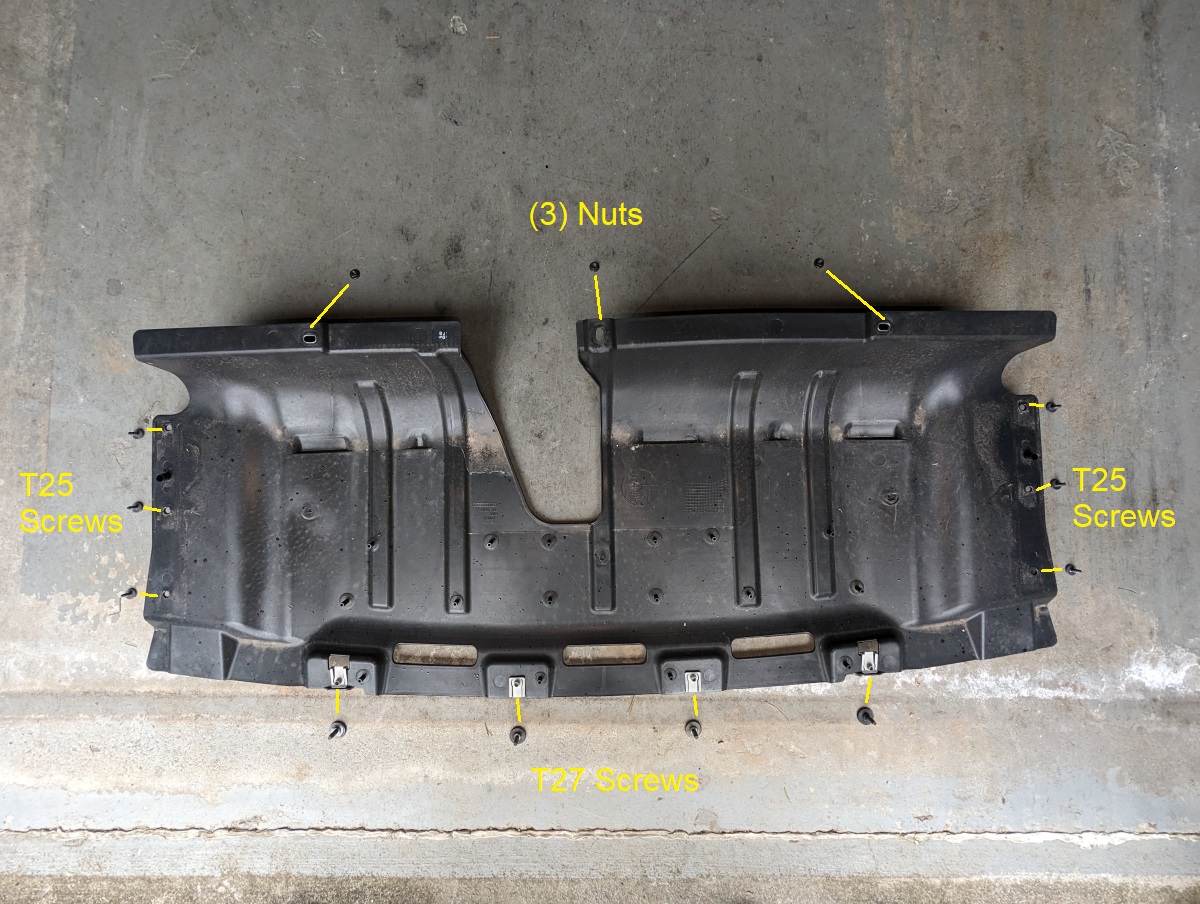

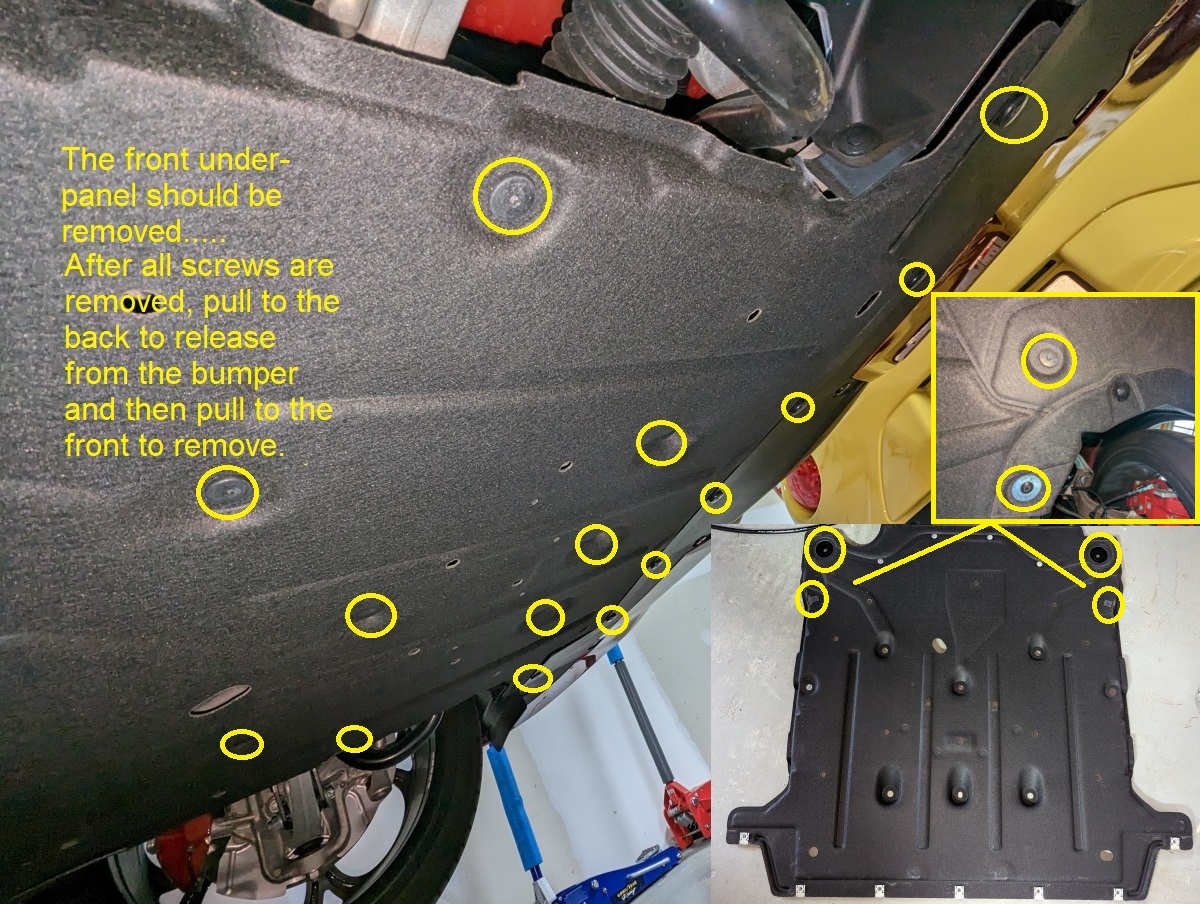

First oil/filter change for me at 1.5k miles, good time to install a Stahlbus Oil Drain Valve Plug M14x1.5x12mm from Amazon - Installation and Operating Instructions.

Oil changed using Amsoil Signature Series 0W-30 Synthetic Motor Oil (warranty info HERE) and an OE Alfa Romeo/MOPAR oil filter P/N 04892339AB. If using OE oil, OE Mopar MaxPro+ 159AA SN+ P/N 68444159AA was superceded by MaxPro+ 988AA SP P/N 68523988AA. IMPORTANT to use an oil that meets the spec for LSPI prevention: Hagerty Article, Amsoil Article, Mobil1 Article on LPSI.
No dipstick per se, but there is an optional dipstick (Mopar P/N 2025600210) that can be used as described HERE.
Several good DIY guides: AlfaWorkShop, Auto Tech Mobile Mechanic, Factory Manual, and several forum writeups.

When the oil change notification popped up at ~6300 miles, I did the same as in StelvioForum post #48 HERE to clear the notification (it does not reset the service interval)......by next oil change I'll have extension cables installed so that I can use a SGW Bypass with AlfaOBD or MultiECUScan to not only clear the service notification but reset the service interval.

Lastly, check the oil level using the process in the owners manual.




I chose Madness AutoWorks Monza Exhaust on my Stelvio (Giulia installation HERE) but thought I would try something different with the Giulia, a lot more to choose from.
I narrowed my choices down to:
aFe Catback Exhaust that was on sale (installation instructions HERE, forum discussion HERE and HERE, video HERE) or

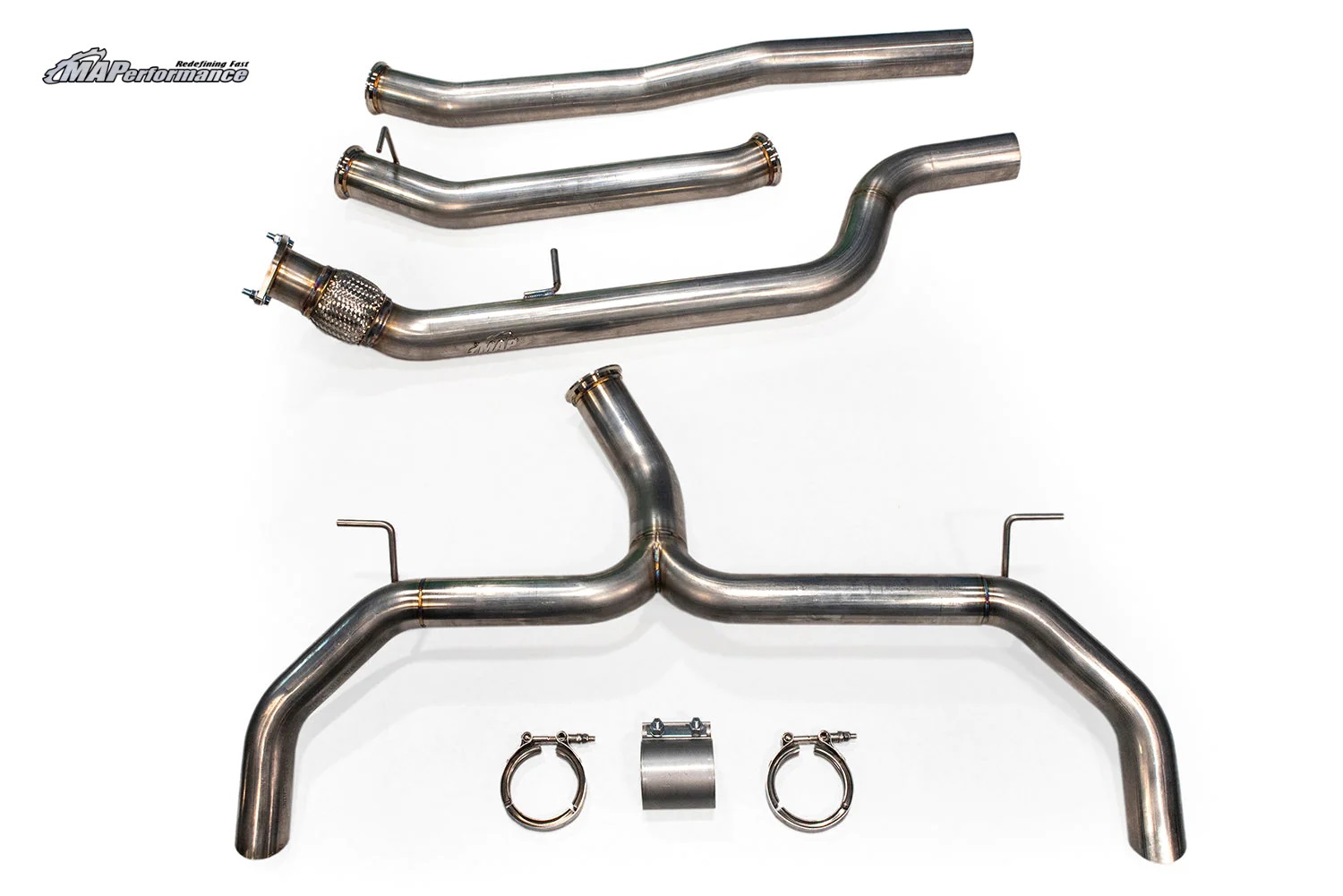

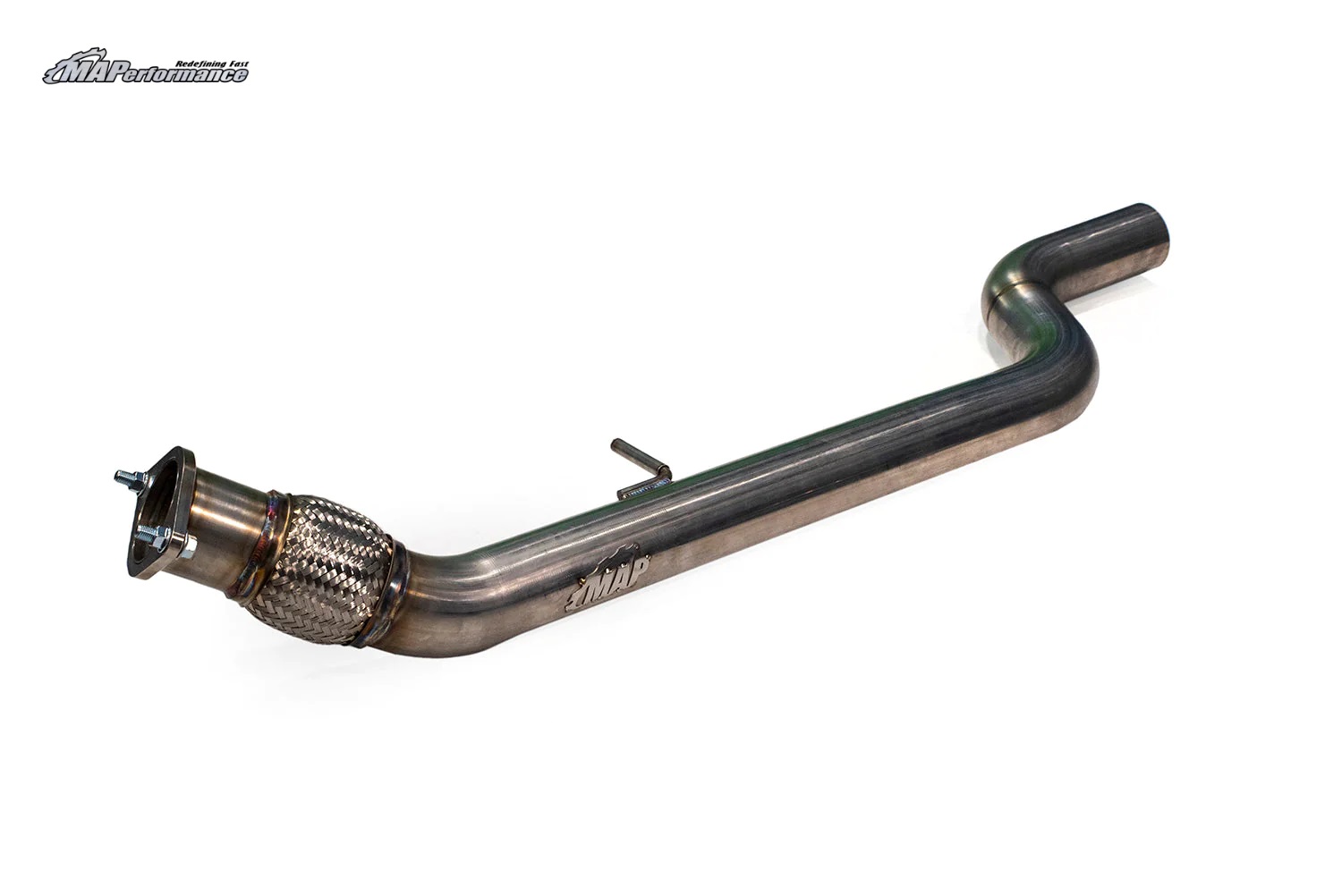

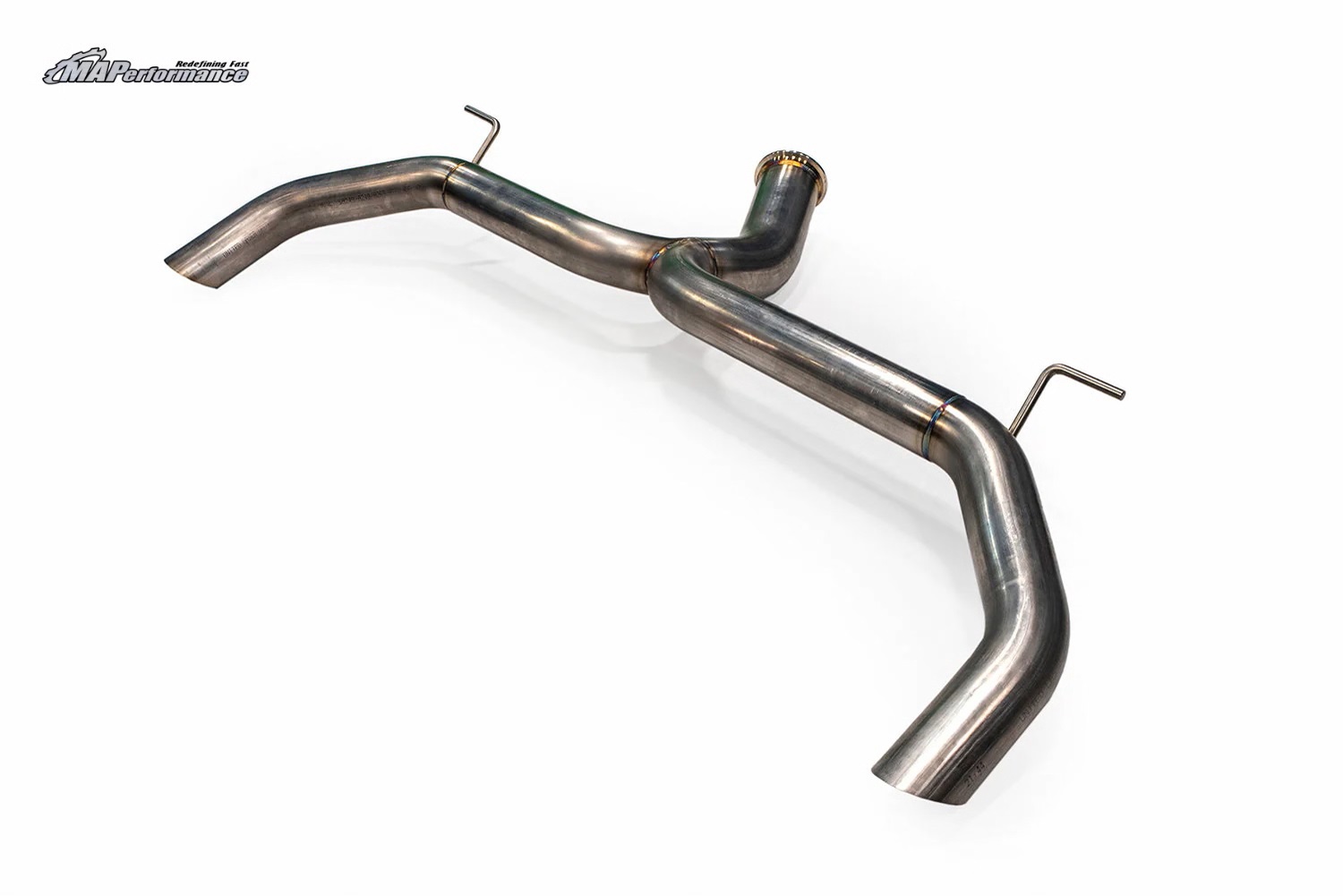

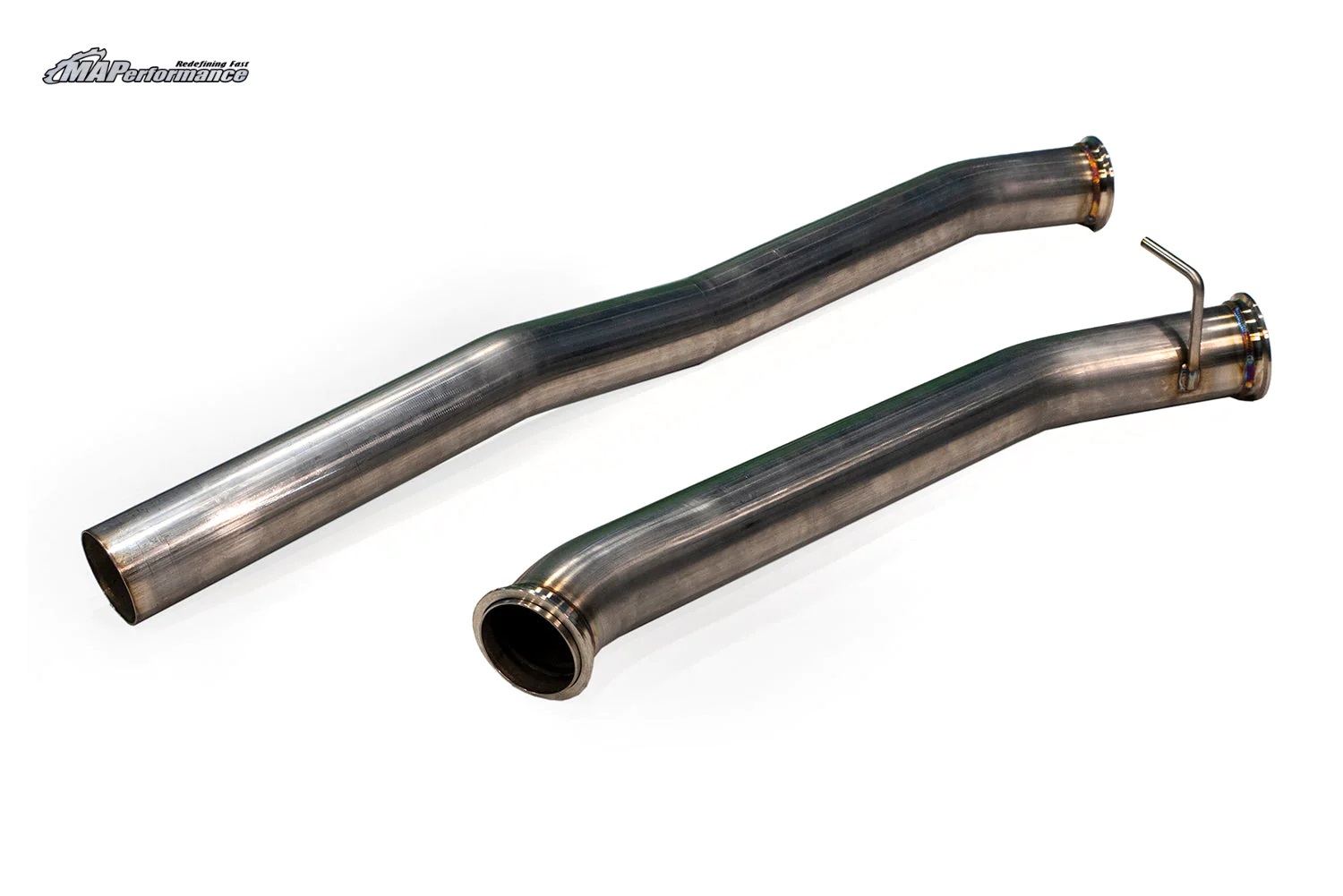

MA Performance Catback Exhaust that was discounted by sales (installation instructions HERE, forum discussion HERE and HERE, video HERE)
Why MA Performance? Their responsive customer service staff and quality of their exhaust, no one else builds an exhaust to a spec where v-band clamps can be used. Exhaust arrived well packed with all required hardware.

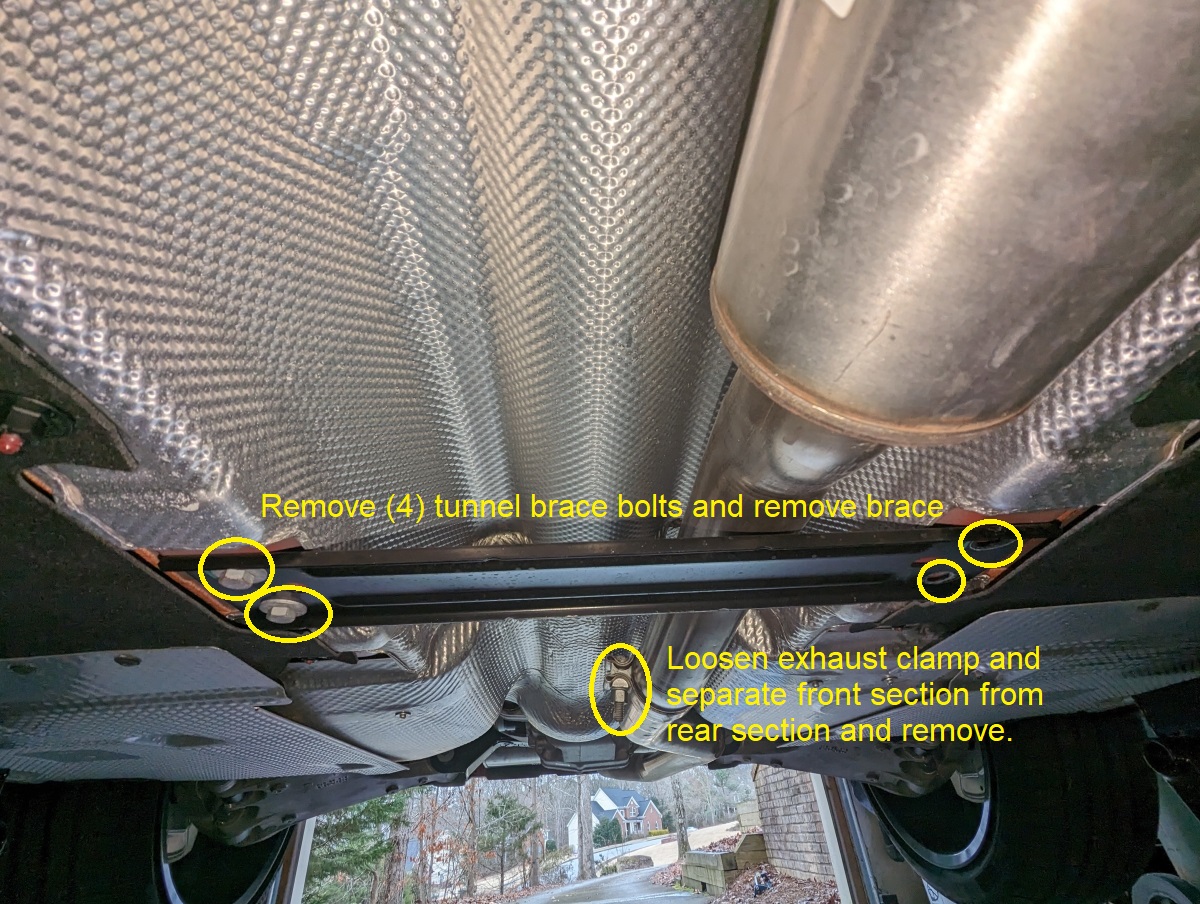

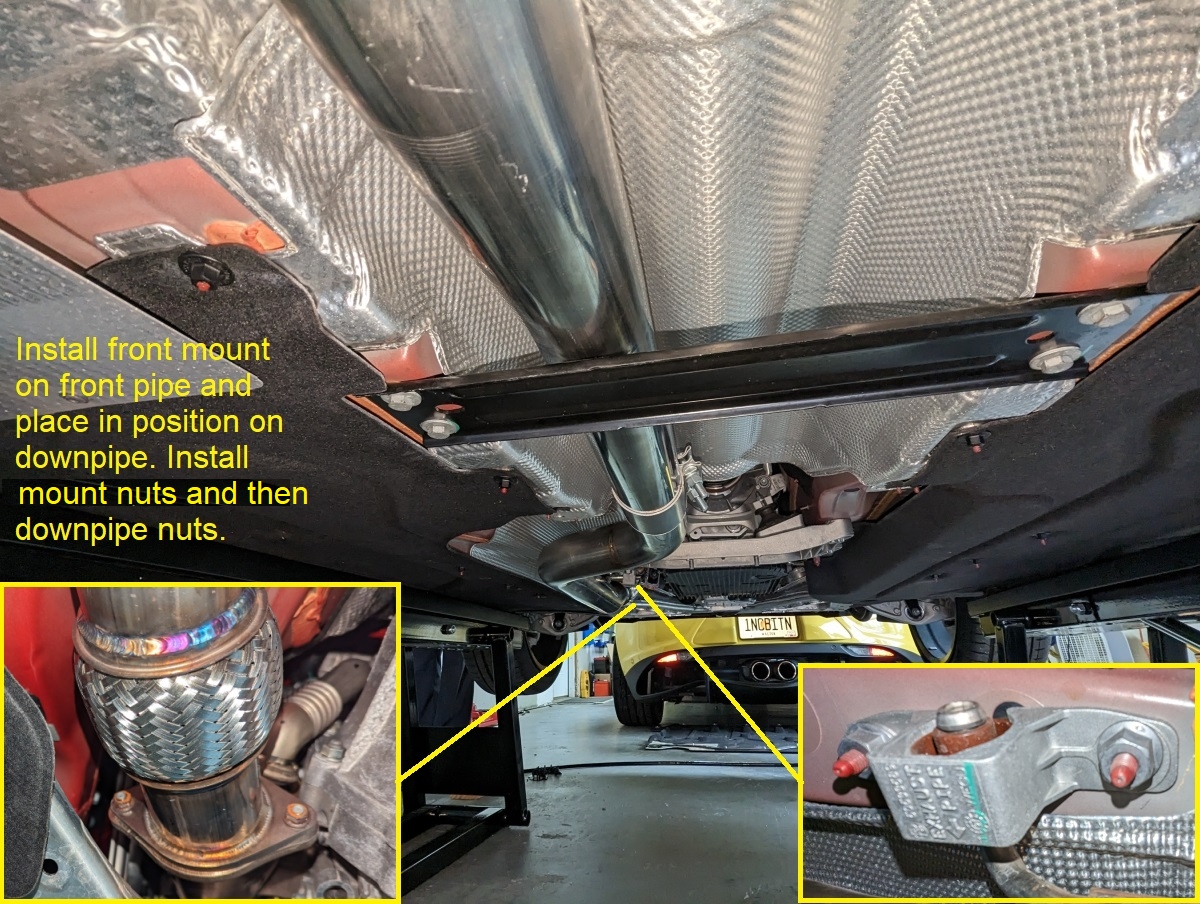

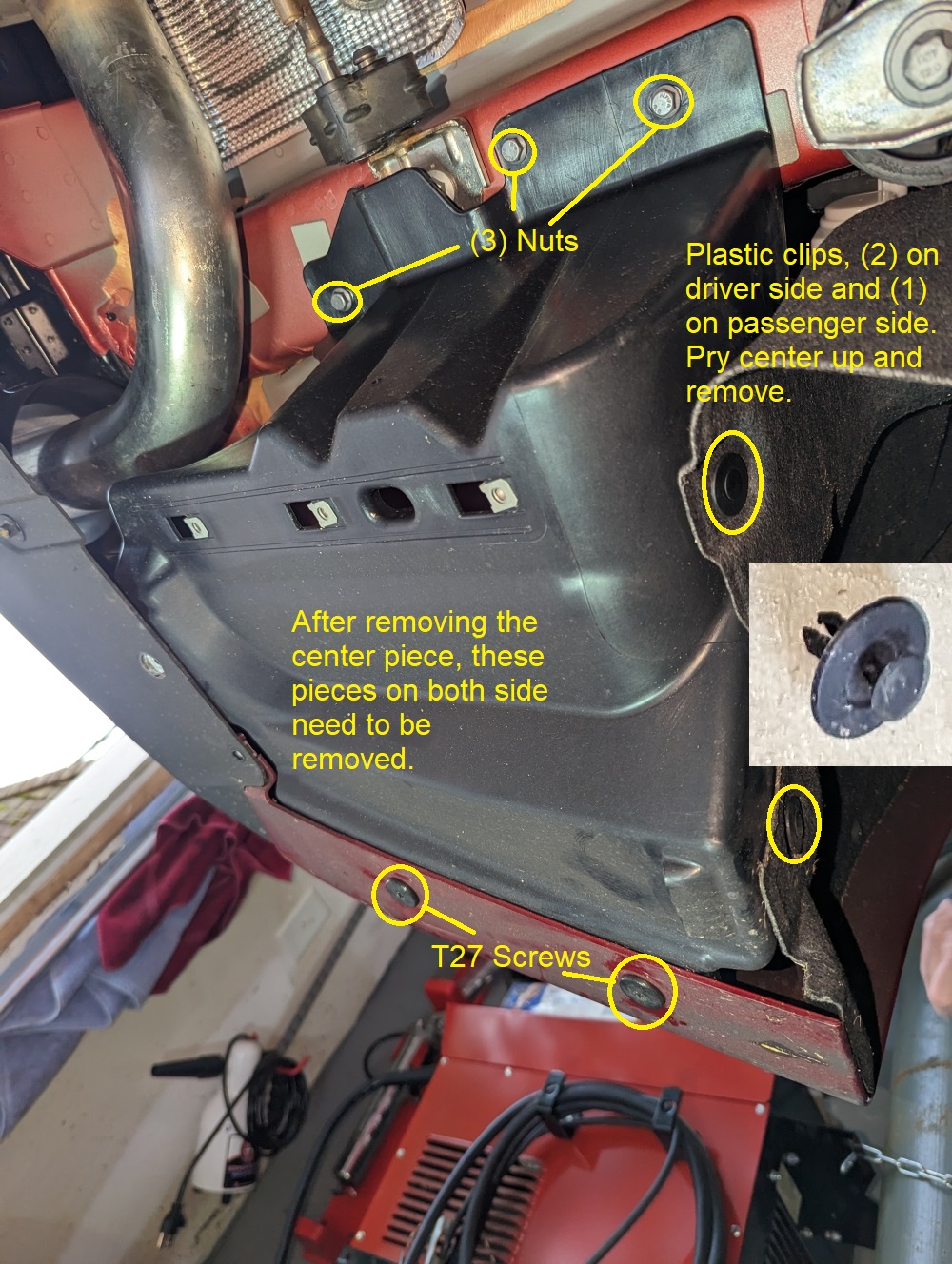

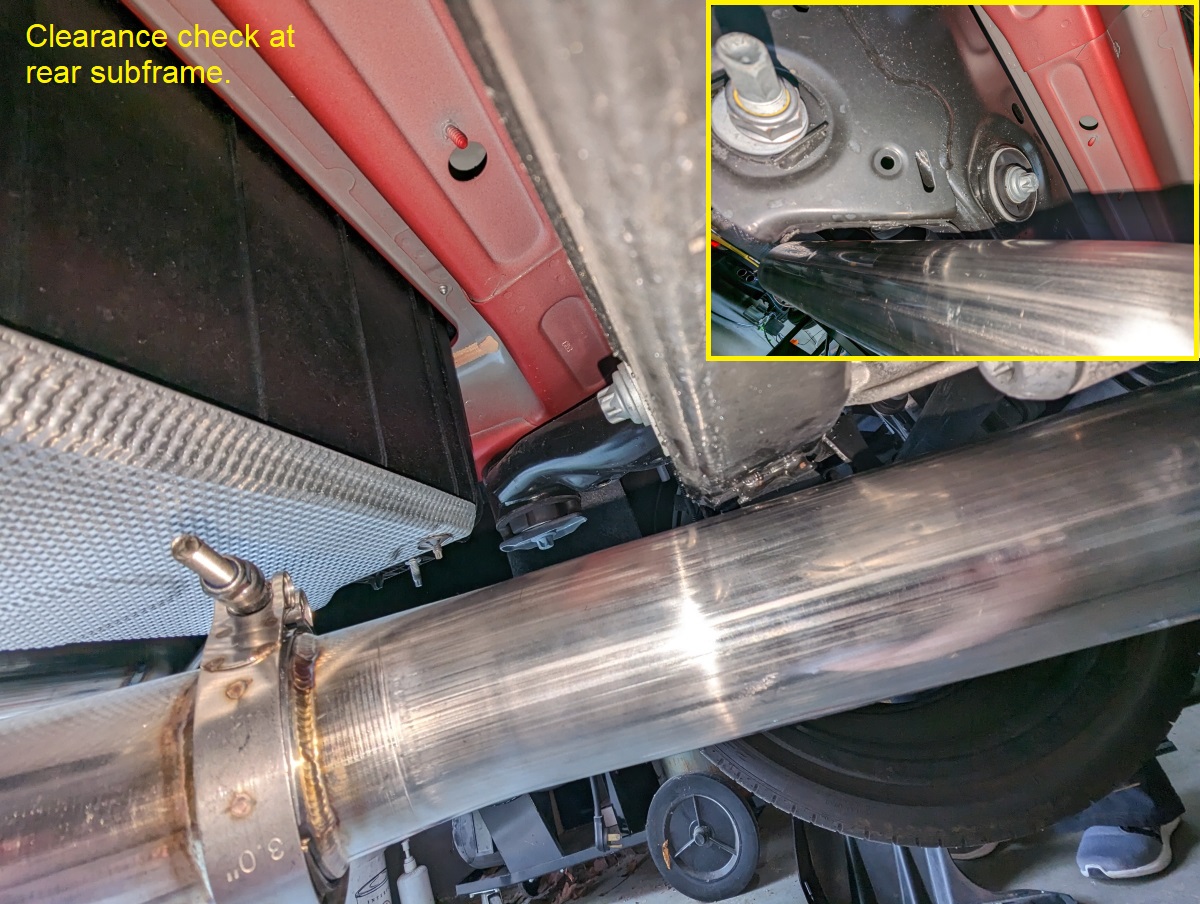

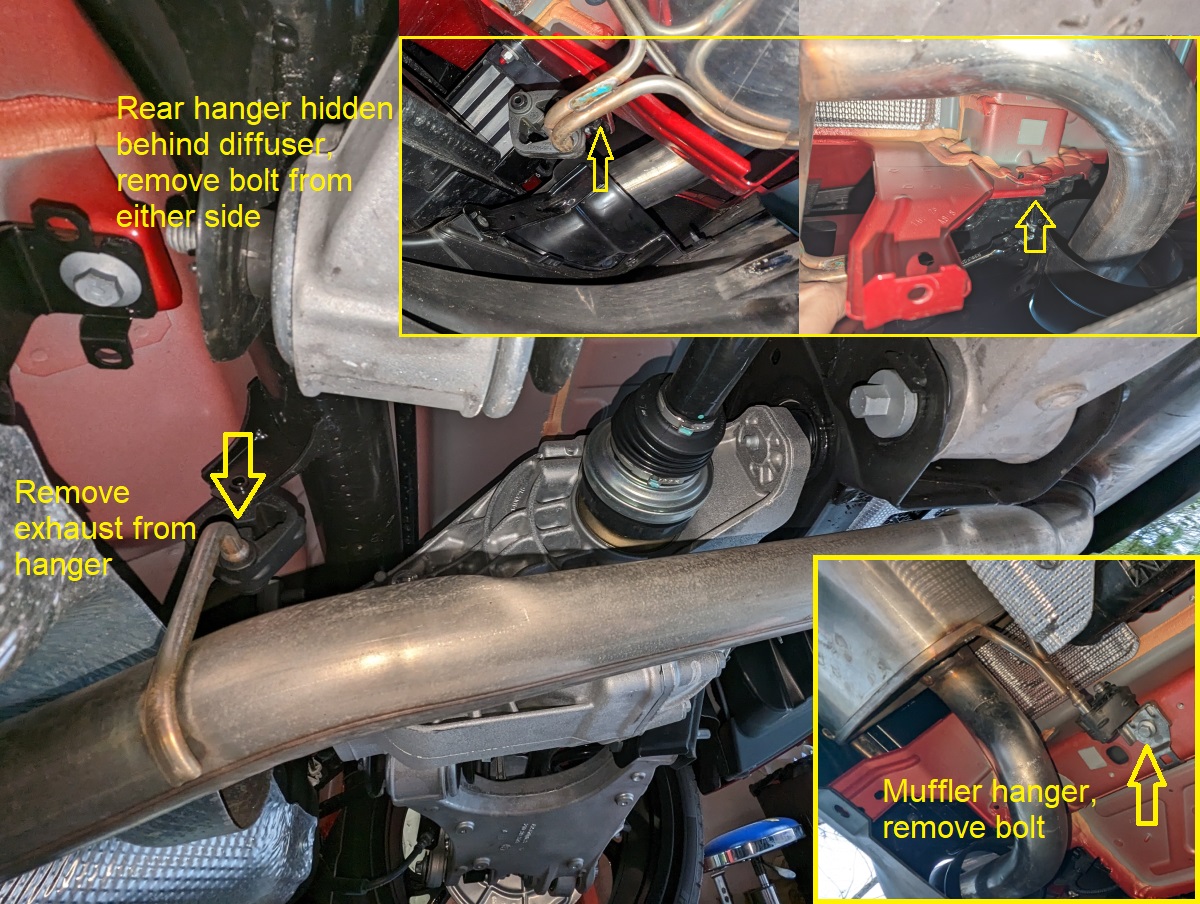

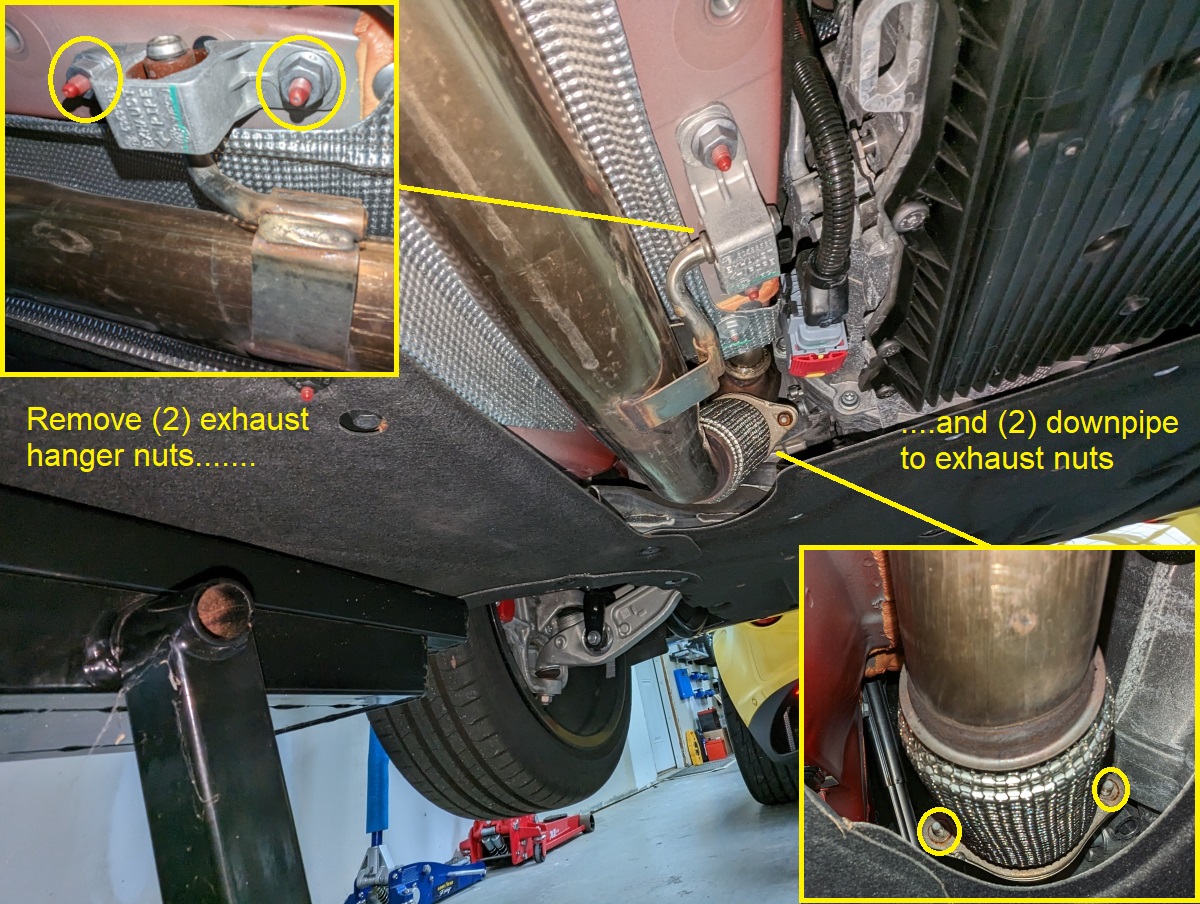

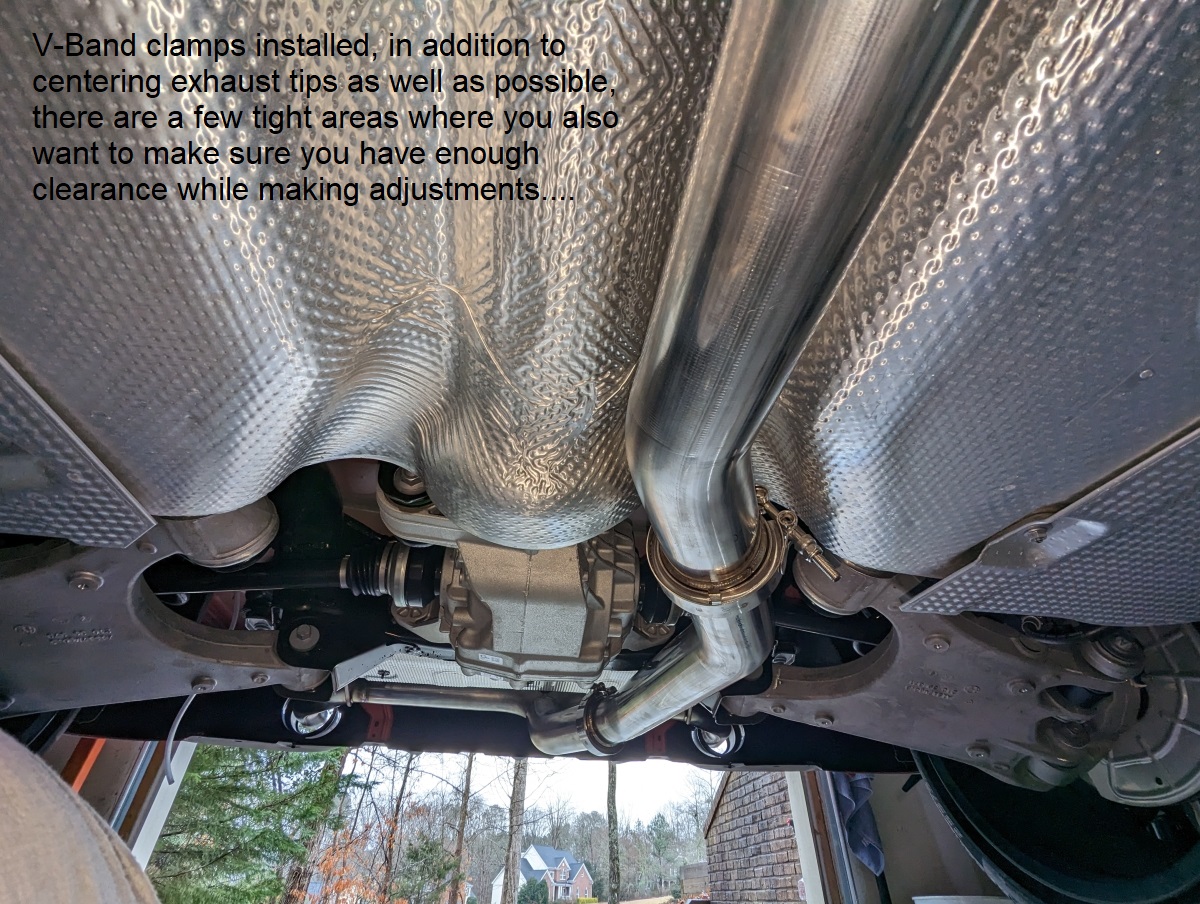

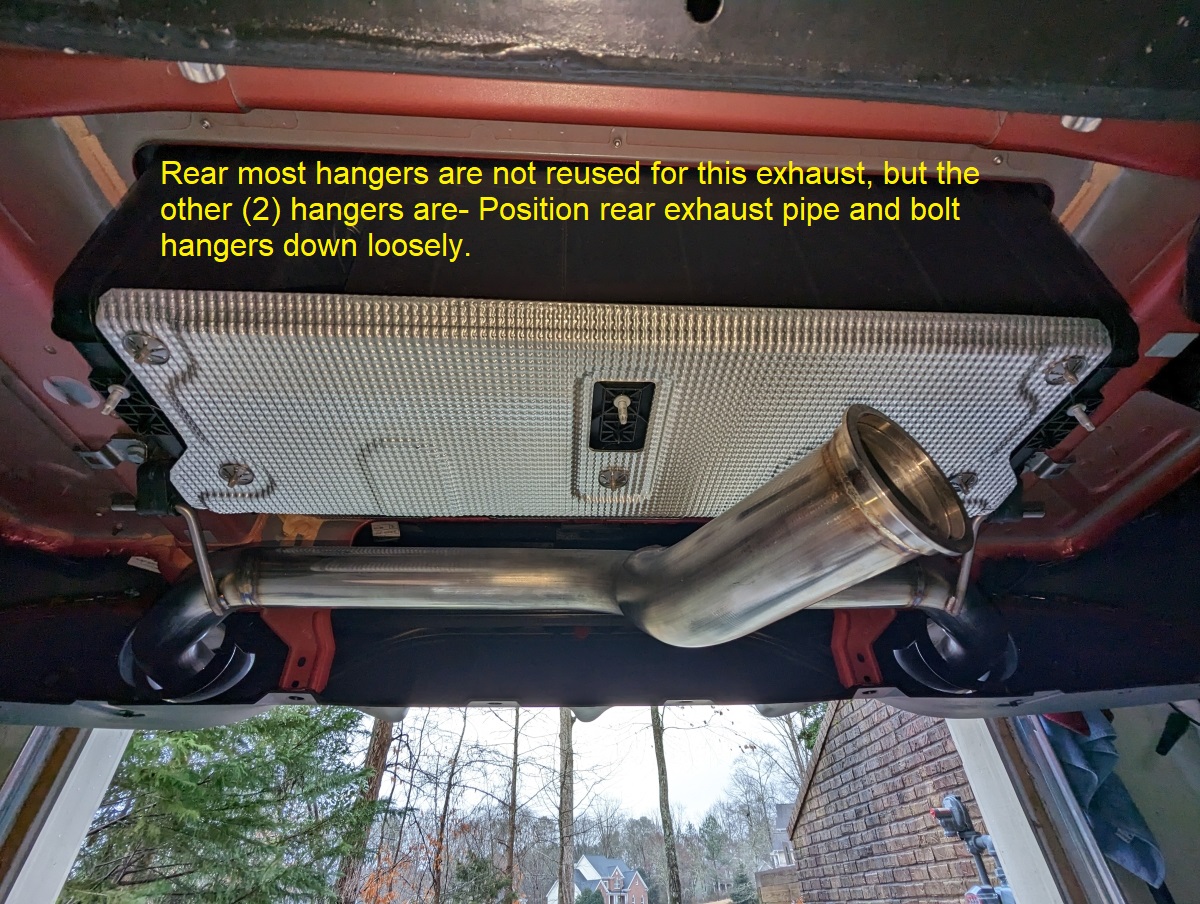

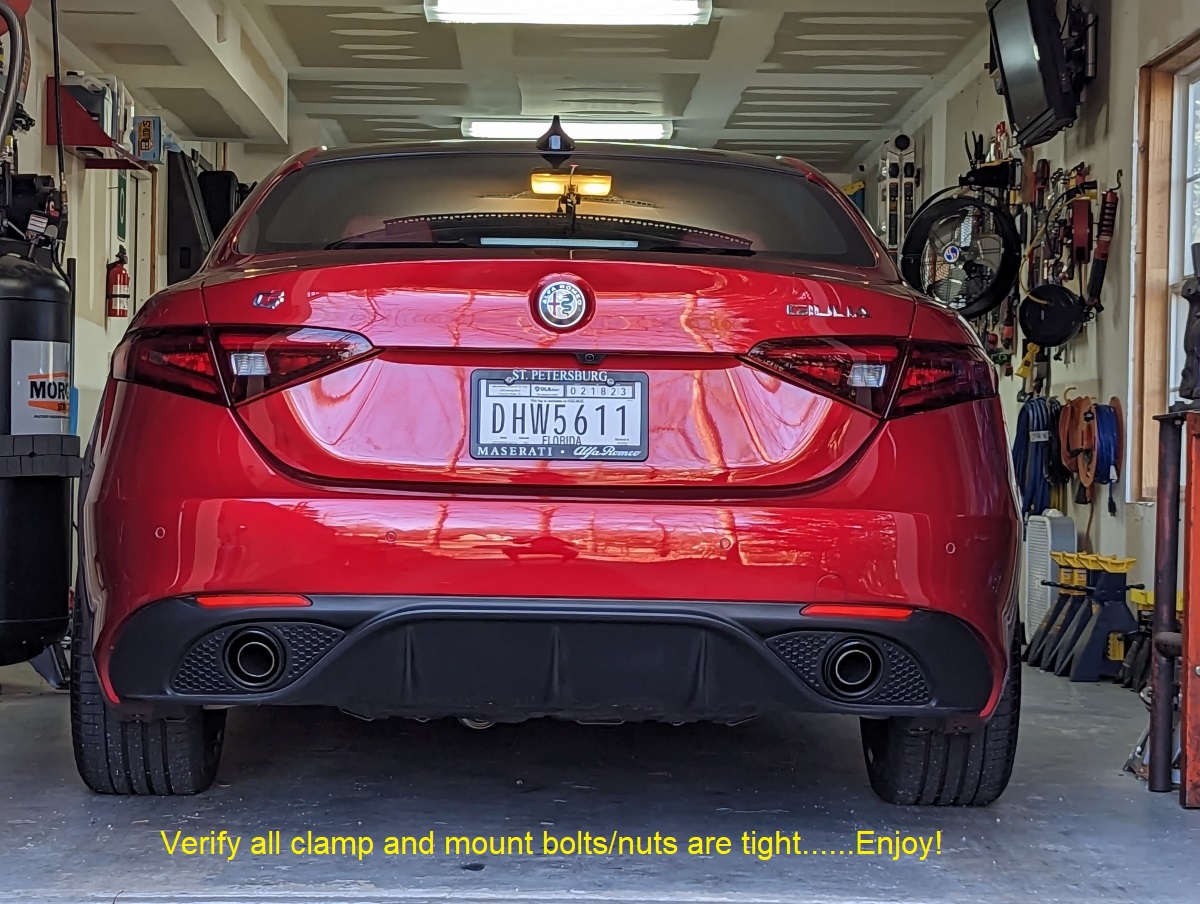

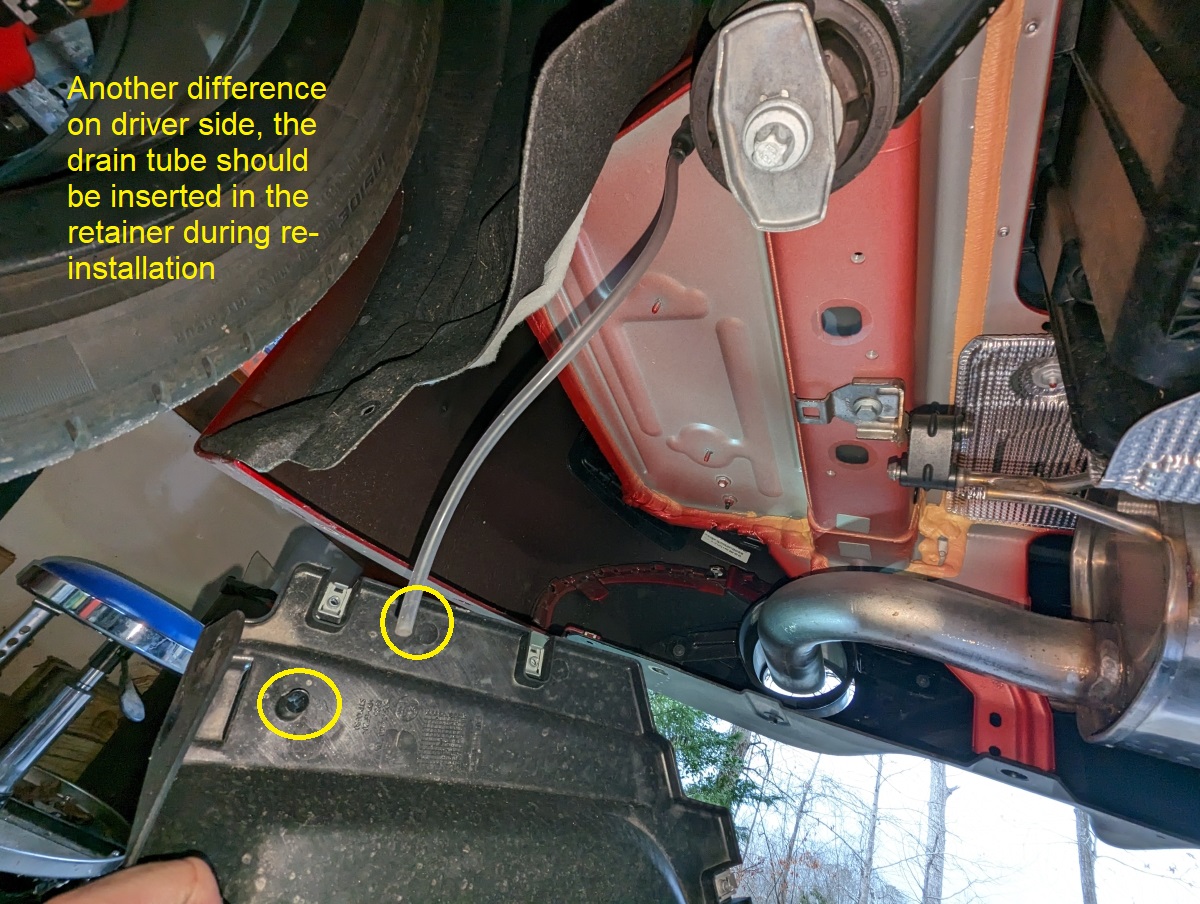

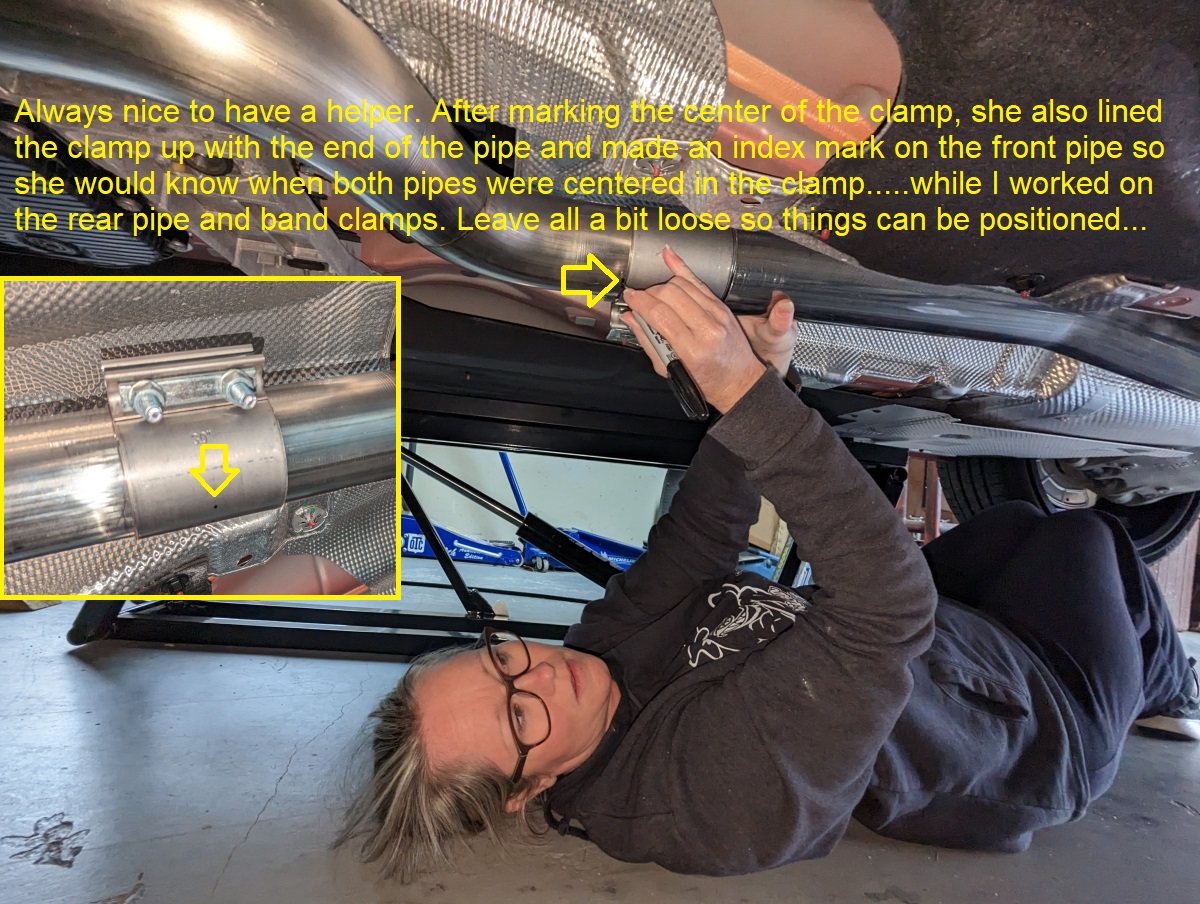

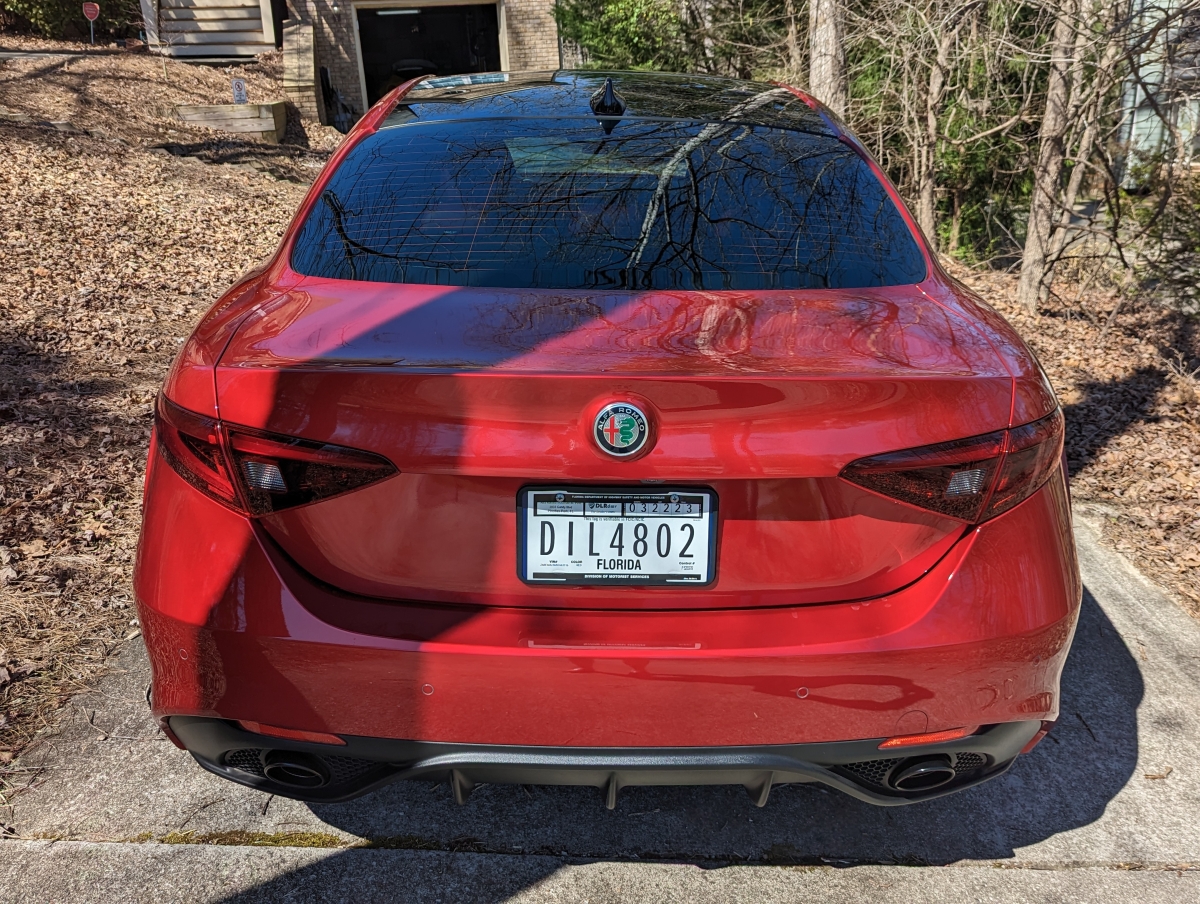

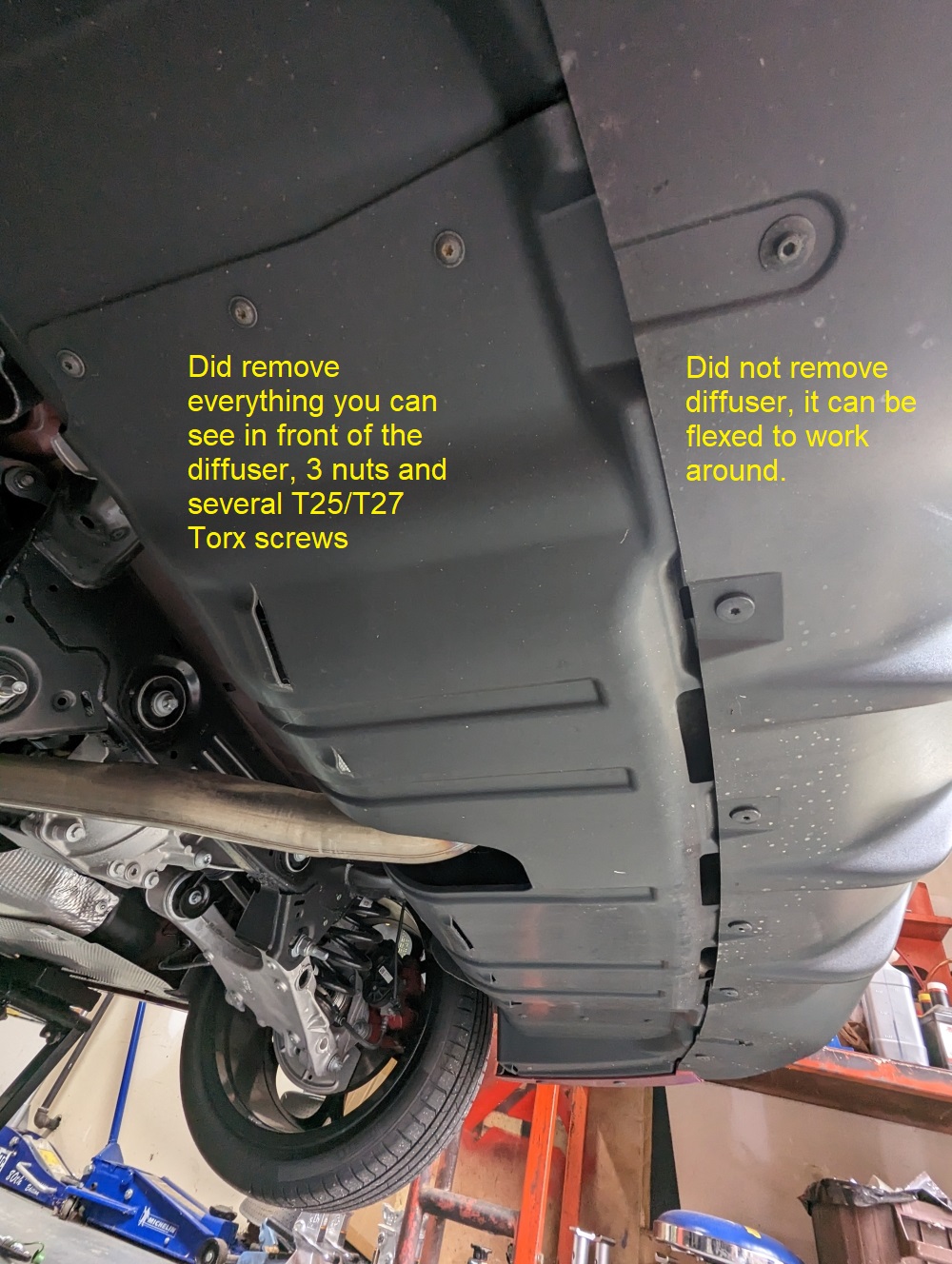

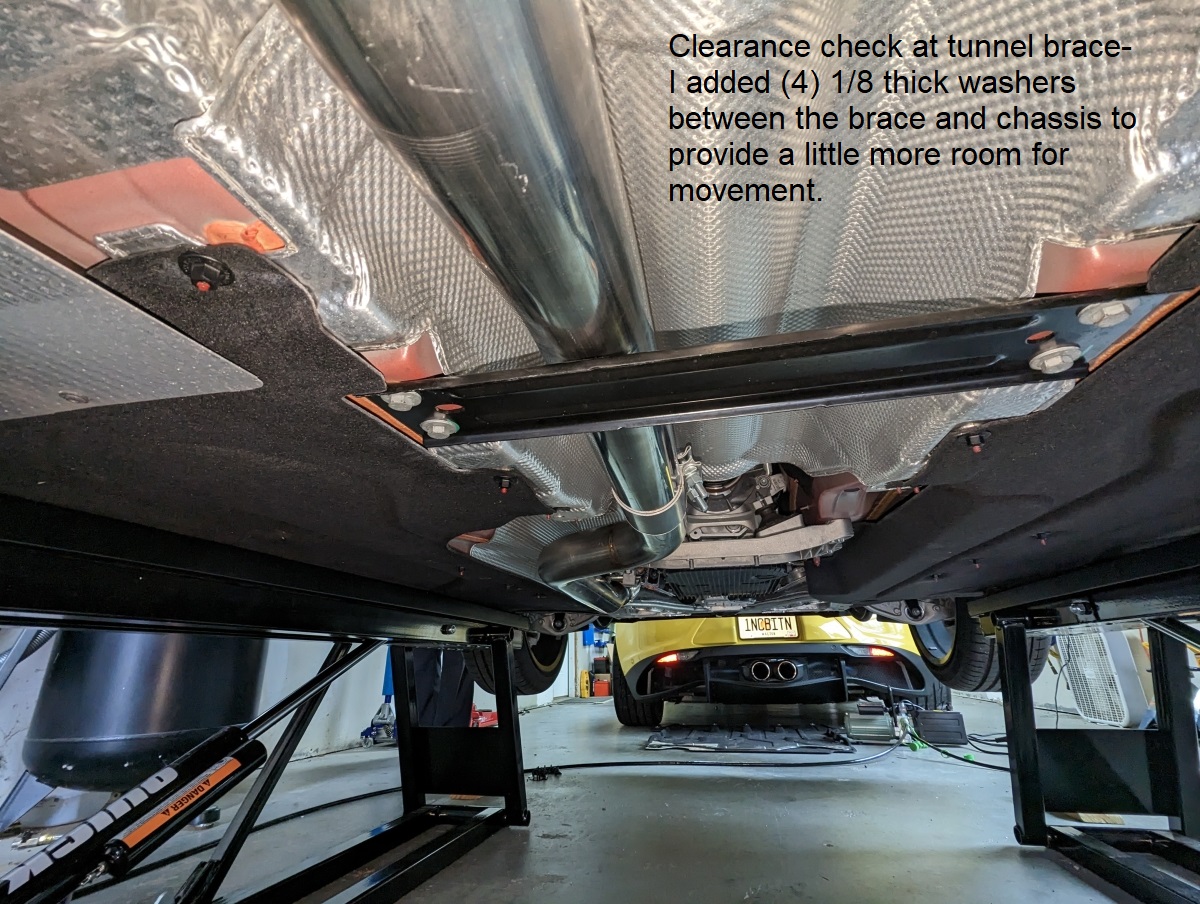

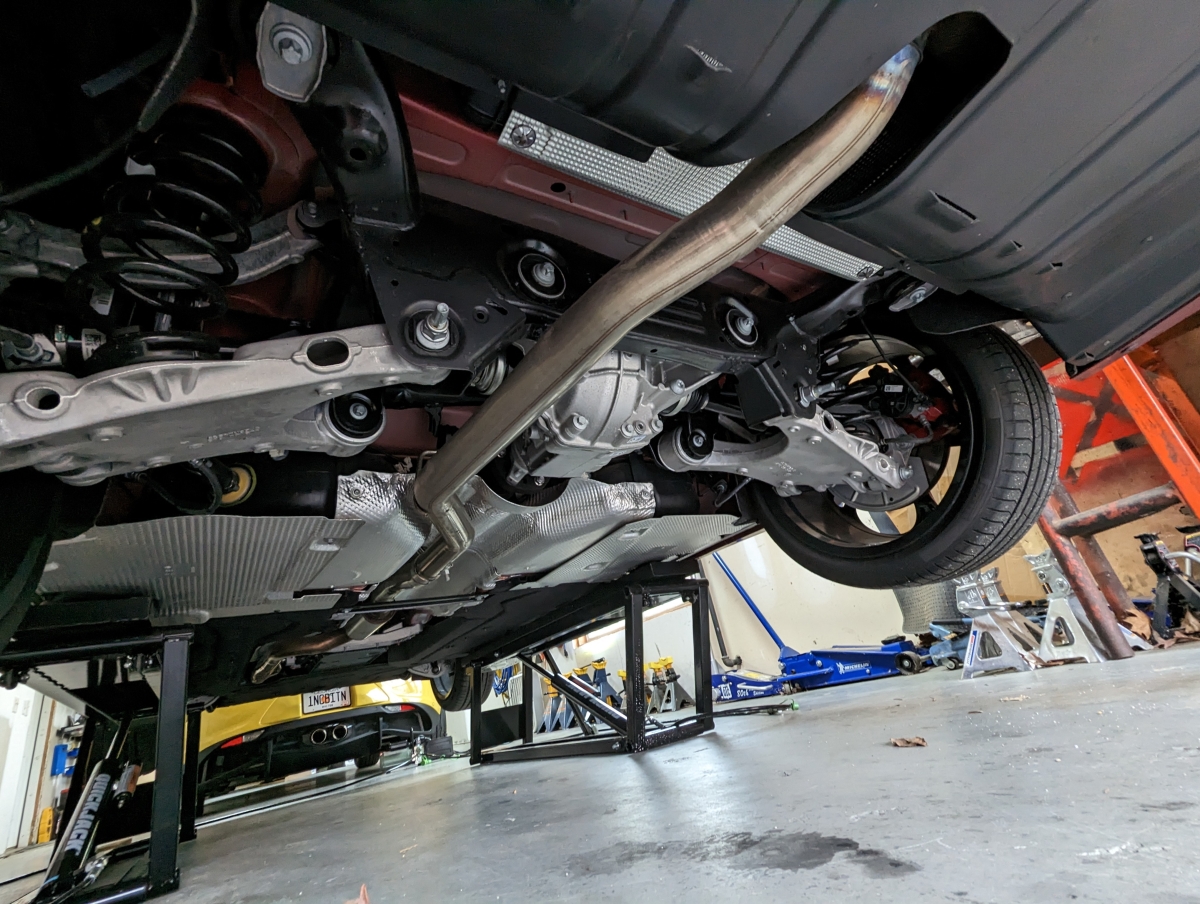

My exhaust removal and installation detailed in pics below. One of my favorite tools bought later in life was the Lisle Exhaust Hanger Removal Pliers, wish I had bought this tool 20 years ago, makes hanger removal SO easy as demonstrated HERE. Installation took a few hours, not bad at all- Everything lined up easily.
First, the Stelvio exhaust was WAY easier to remove/replace compared to the Giulia.....Giulia required more disassembly and finesse. Car in the air on QuickJacks with extensions, had to use my cheater 2x4 ramp extensions under the front tires to slide them in/out. Next, I removed all the under panels in front of the rear diffuser and the front under panel. Starting at the downpipe and working back: I removed nuts at the downpipe>exhaust connection, removed nuts for the front hanger, removed tunnel brace, loosened clamp and removed front exhaust section, removed exhaust from mid hanger, removed bolts for four rear exhaust hangers, removed rear section by flexing the diffuser and "gently" flexing thin metal diffuser mounts to pull exhaust down and out- all mounts still attached to muffler. Rear most mounts not reused, rear mounts and front mount removed from OE exhaust and installed on MAP exhaust. Front pipe installed (OE downpipe gasket is reused), front mount installed with both nuts followed by downpipe nuts. Tunnel brace reinstalled with washers/shims for added clearance. Sleeve clamp installed on front pipe and connecting pipe. V-Band clamps installed for last pipe, all clamp nuts tightened to the point where there was enough play for adjustments checking tip alignment and possible interference areas. All nuts tightened- I may be able to get the tips more centered, will revisit at my 1k mile oil change when it's back up in the air.
Road Test.....Exhaust sounds aggressive at cold start but mellows a bit as it warms up, sounds great. I did not hear any metal to metal contact so adjustments around interference points seems to be OK.
Video: Cold Start/Idle, Warm Idle, Throttle Blips





Having already done a similar mod in my Stelvio and some other past autos I have owned, I decided to source two rear center headrests to replace the bulky outer rear headrests to improve visibility.
Done, $80 each on eBay from two different sellers, visibility out rear window a definite improvement....and able to fold down the rear seats without moving front seats forward is nice too.

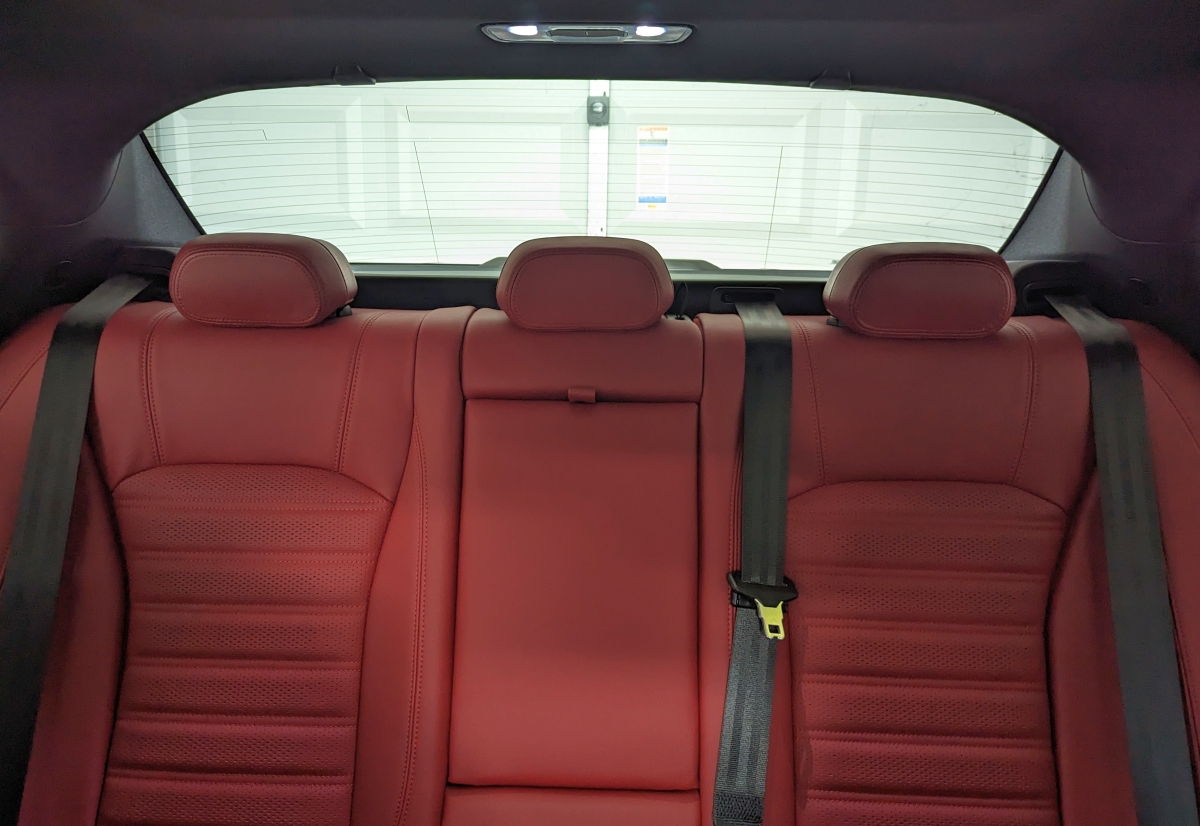

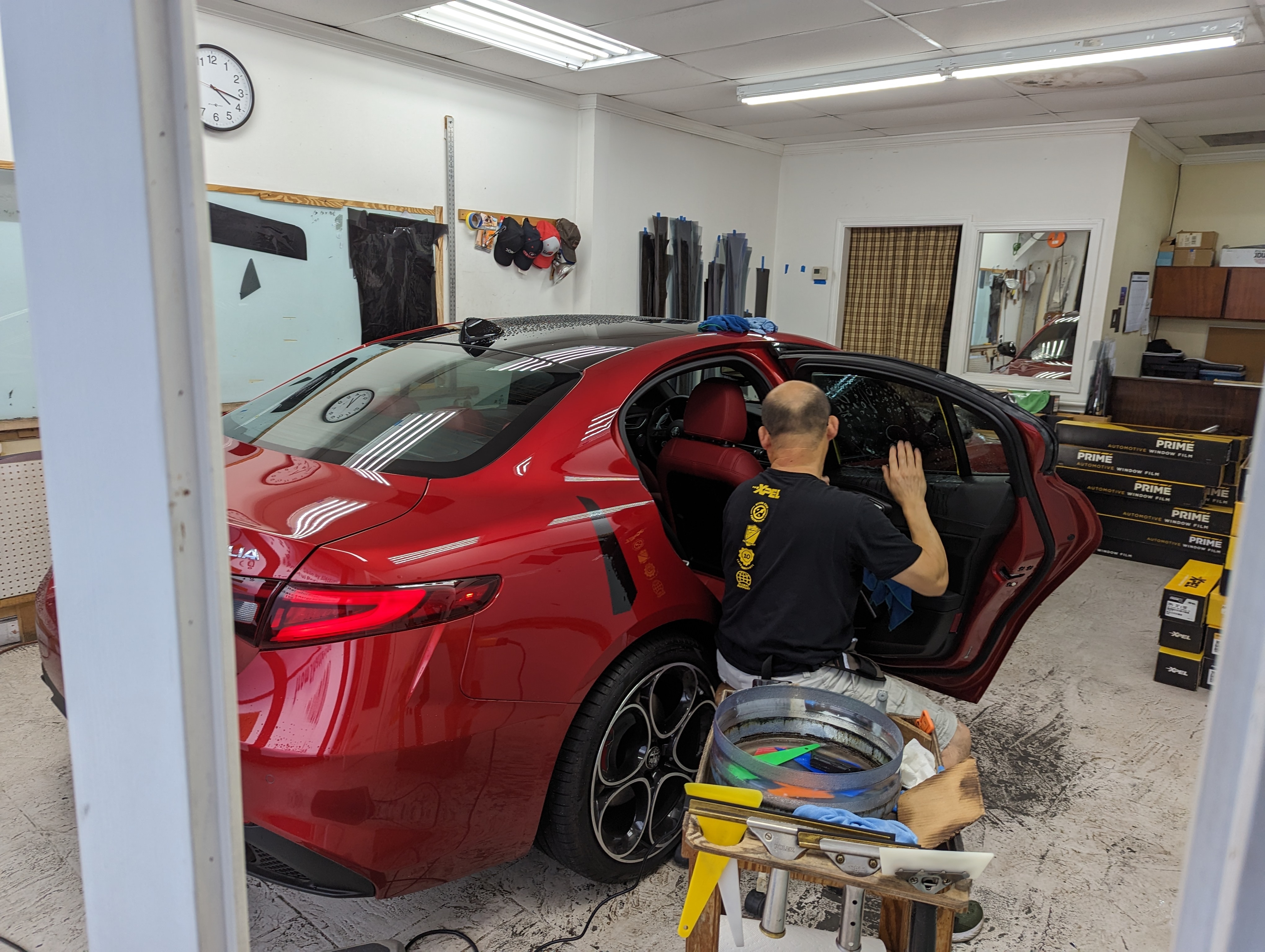

Windows tinted by Solar Tint Service using Xpel Prime XR Black 30 for the side and rear windows. I thought about XR Plus but for the cost difference did not think the minimal performance advantage was worth it- comparison chart HERE.
Both Xpel and Solar Tint Service offer a Lifetime Warranty.

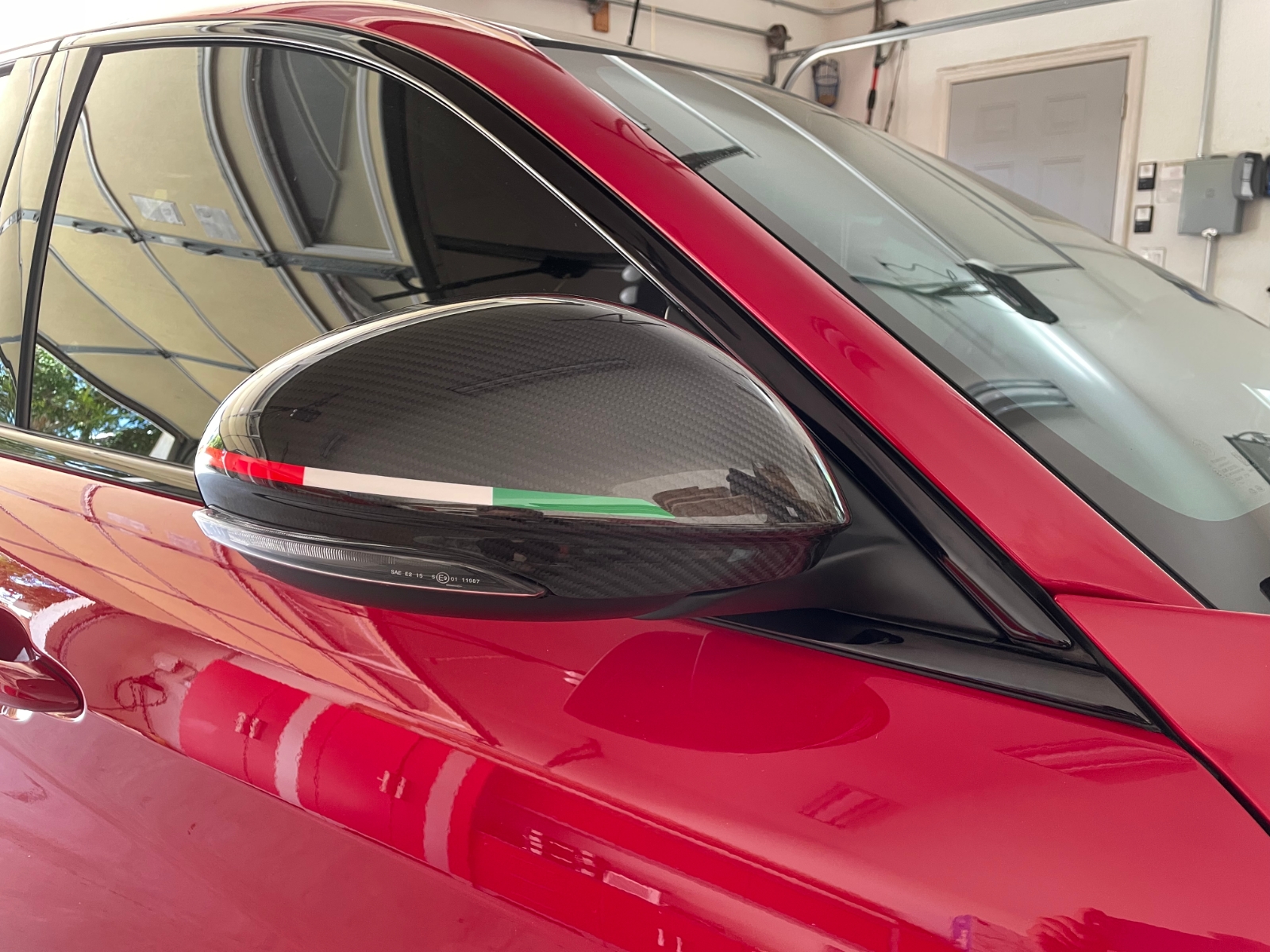

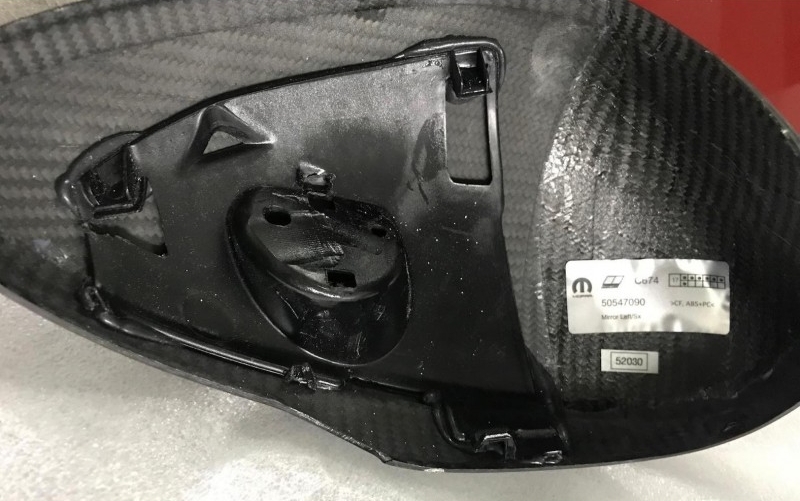

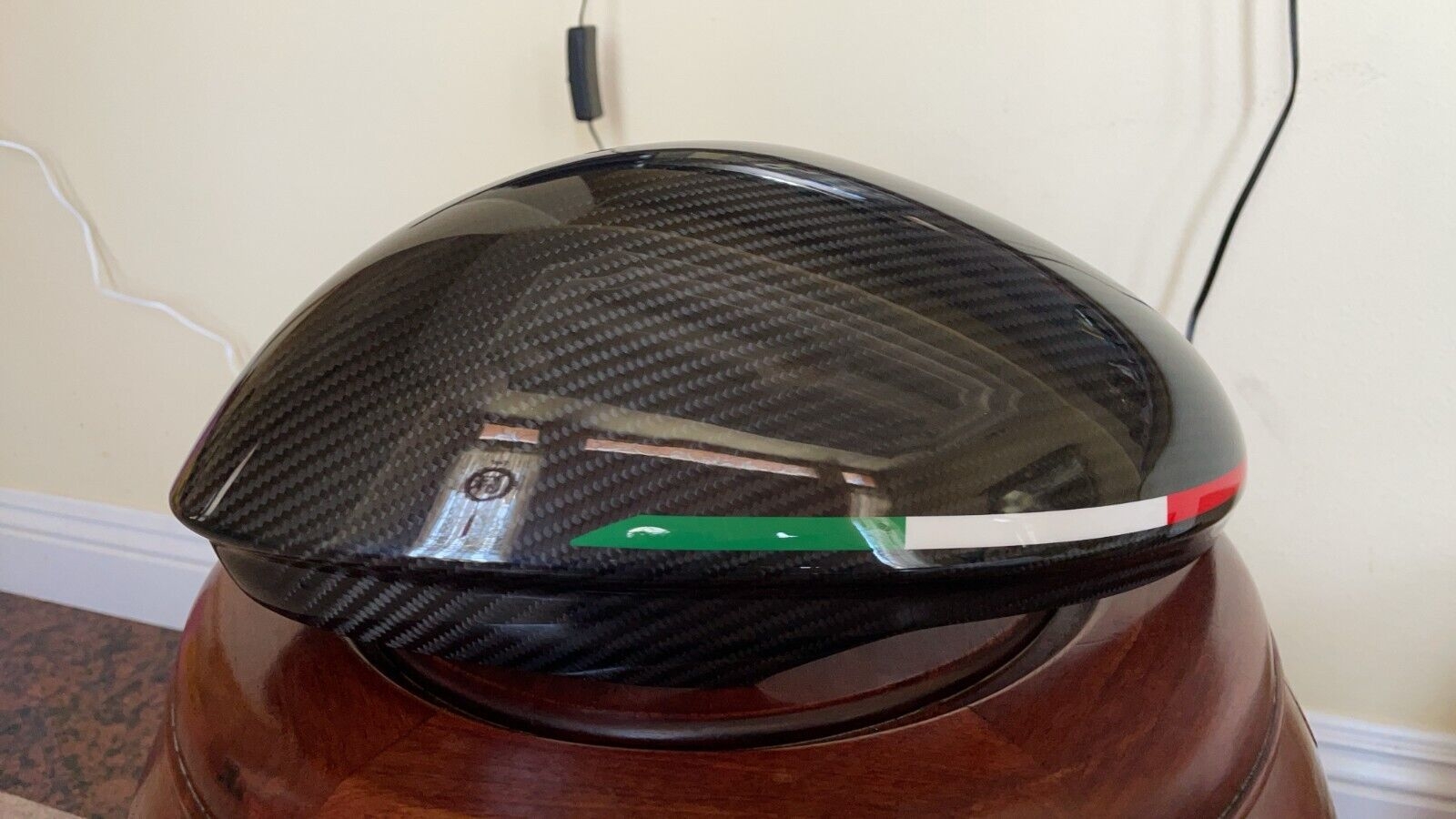

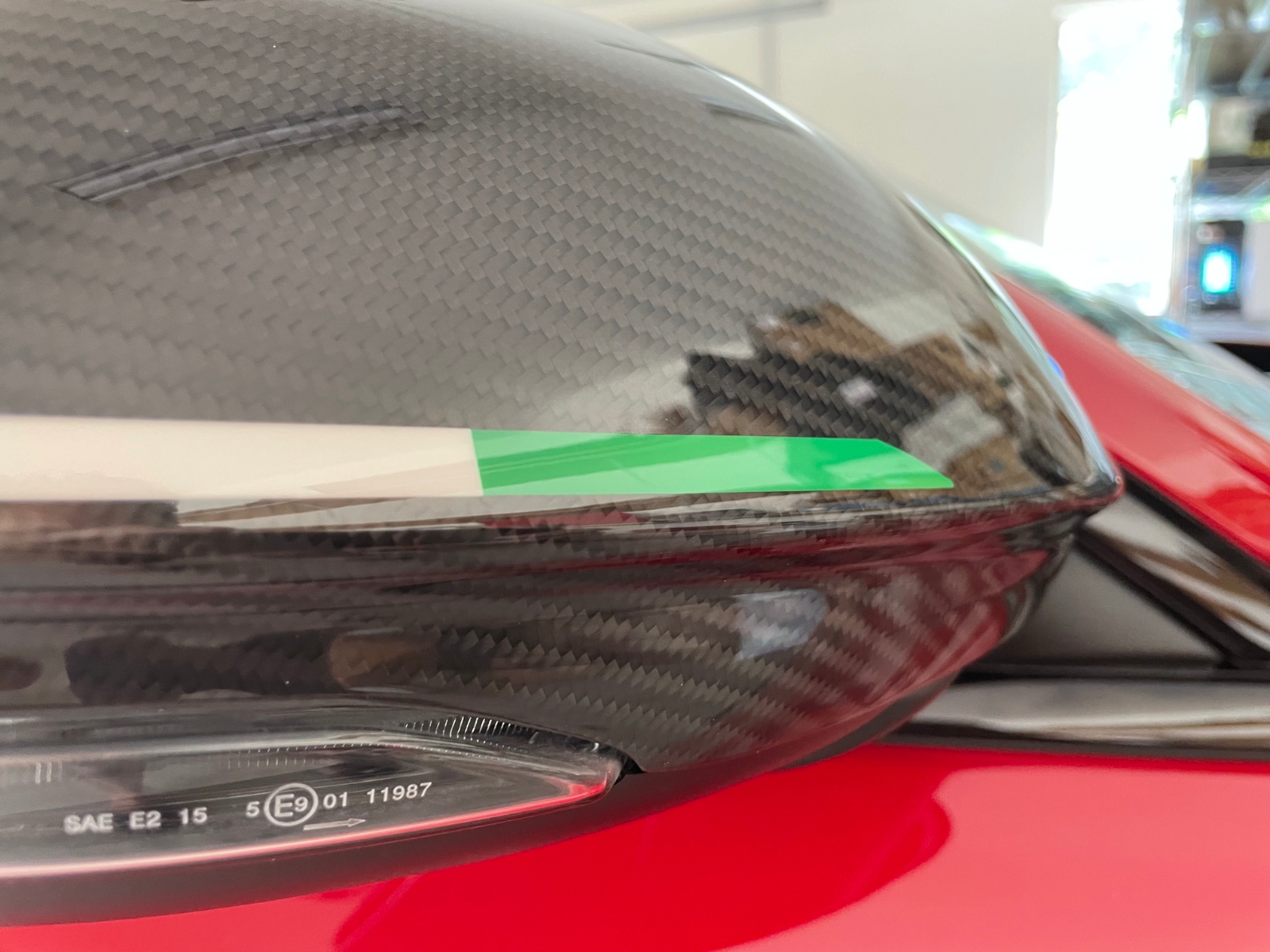

OE GTA/GTAm carbon fiber mirror caps installed, protected by Xpel PPF installed by prior owner. Mine were purchased on eBay lightly used/pre-owned but Alfissimo sells these HERE.
Great video that shows mirror cap removal HERE and factory service manual instructions HERE.



Supply Chain issues continued to affect some of the Alfa parts but Benny at AlfaOnlineParts kept me informed and stayed on top of things and.....finally, my mats came in.

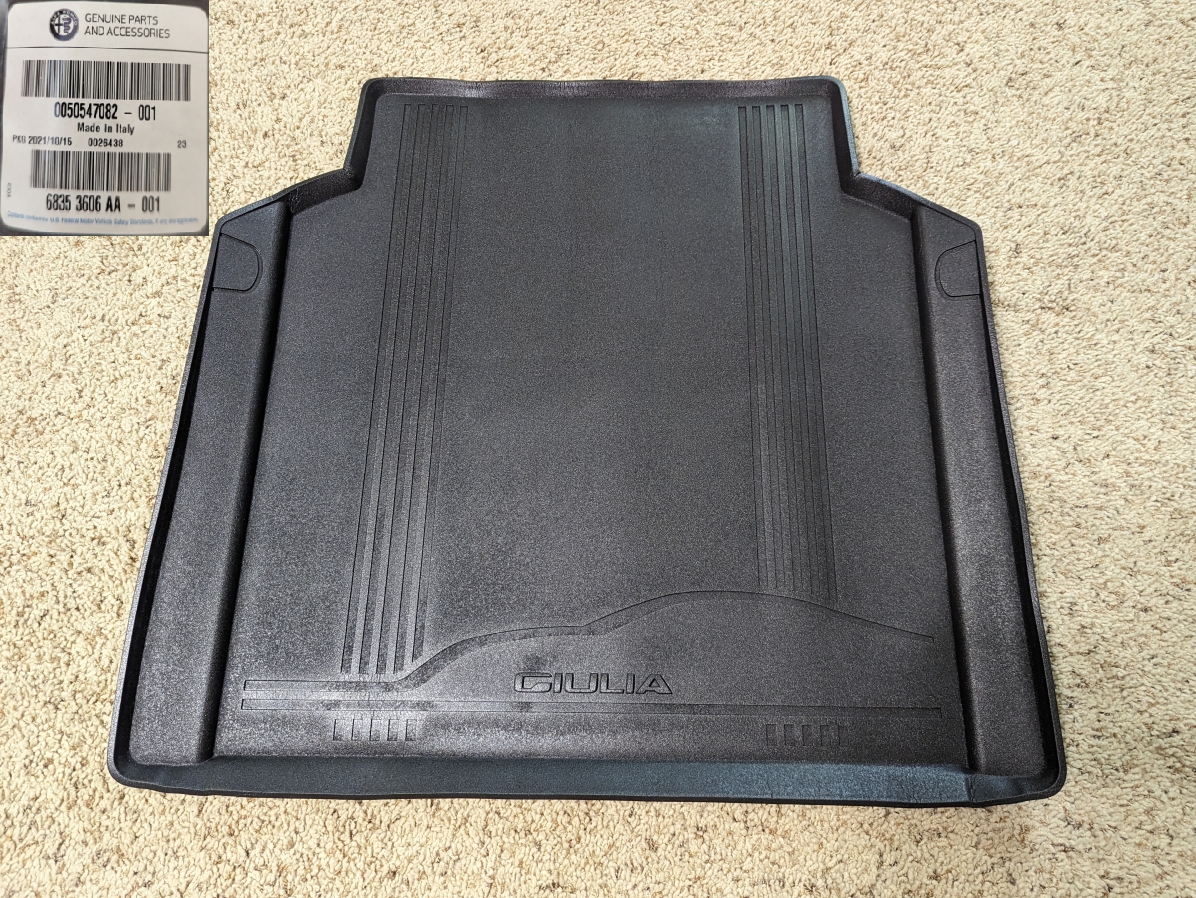

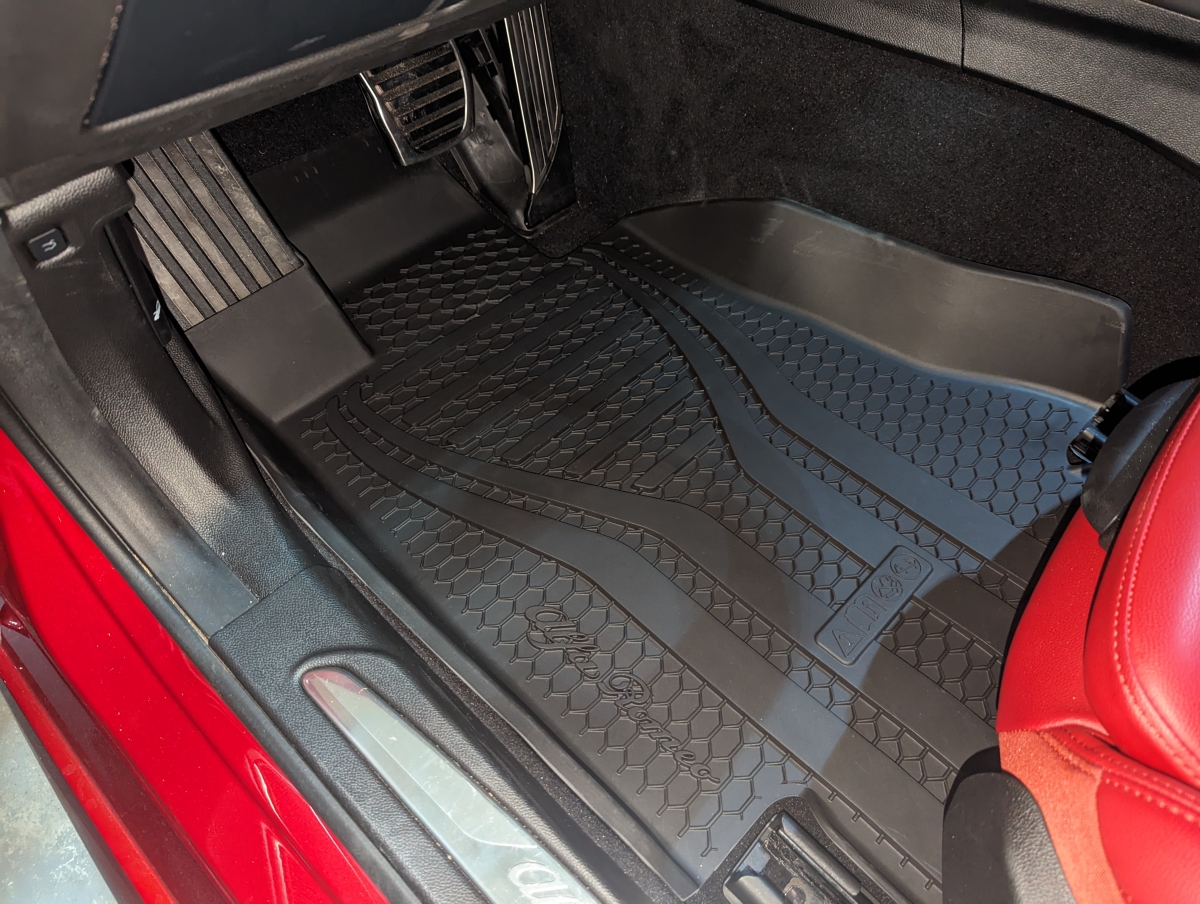

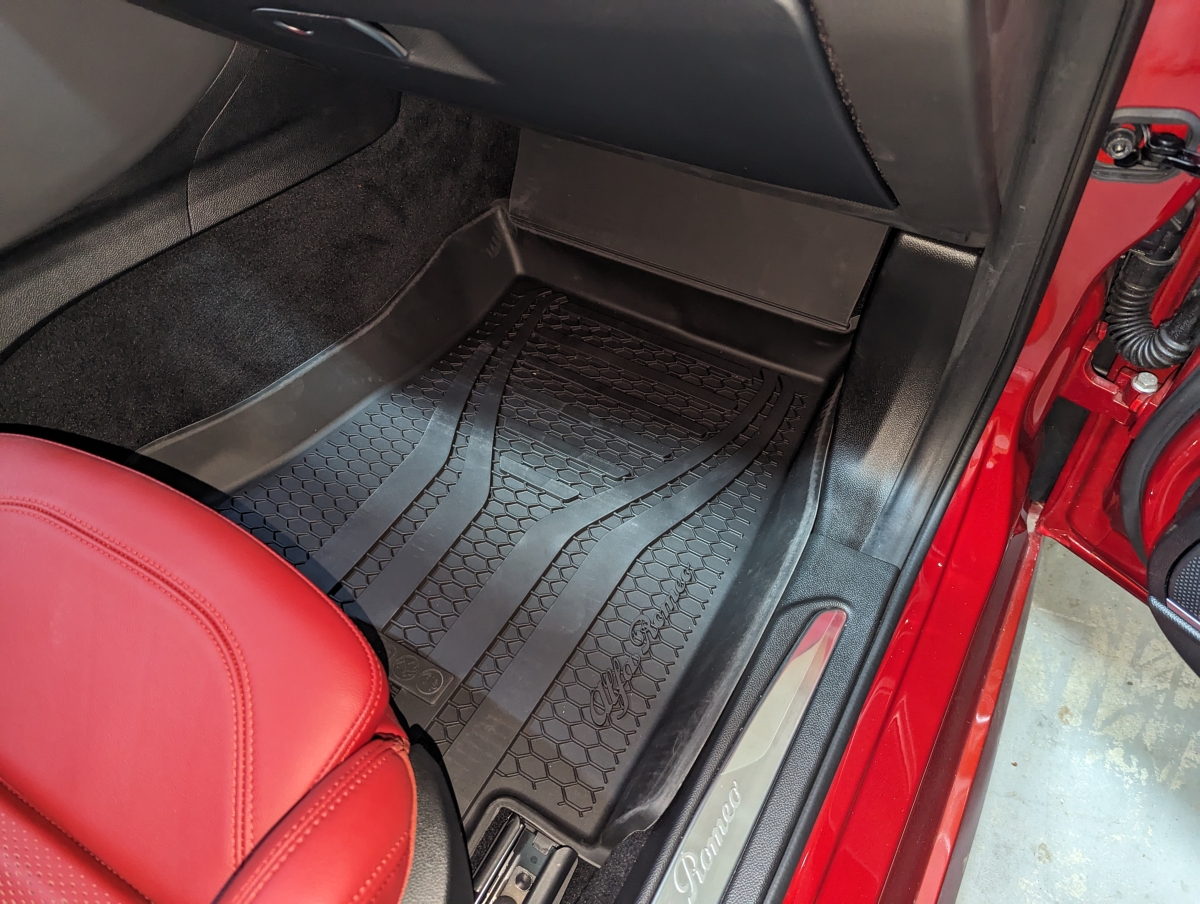

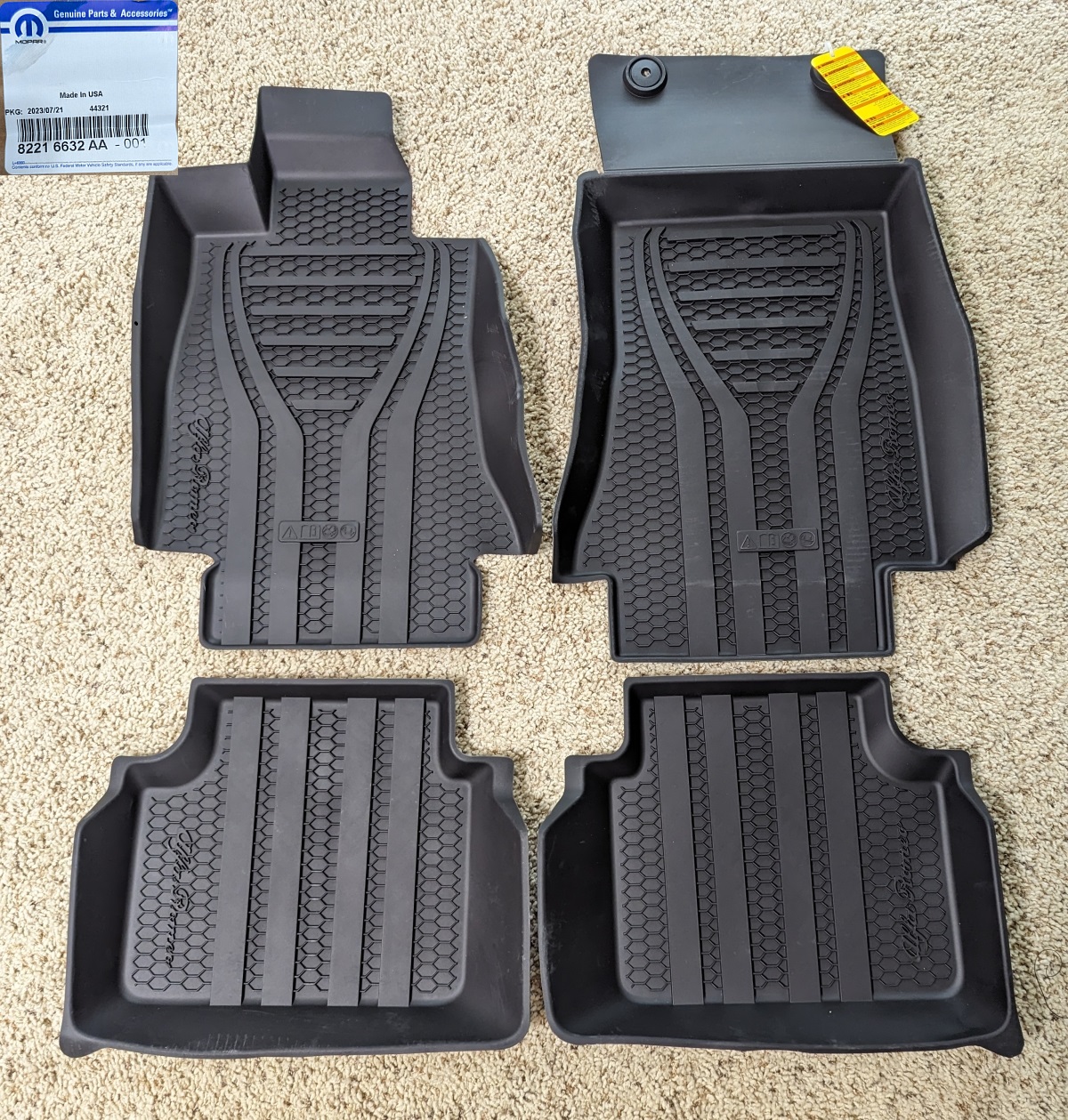

Alfa Romeo All Weather Mats - RWD (P/N 82216632AA) and Alfa Romeo Cargo Tray (P/N 68353606AA) installed.

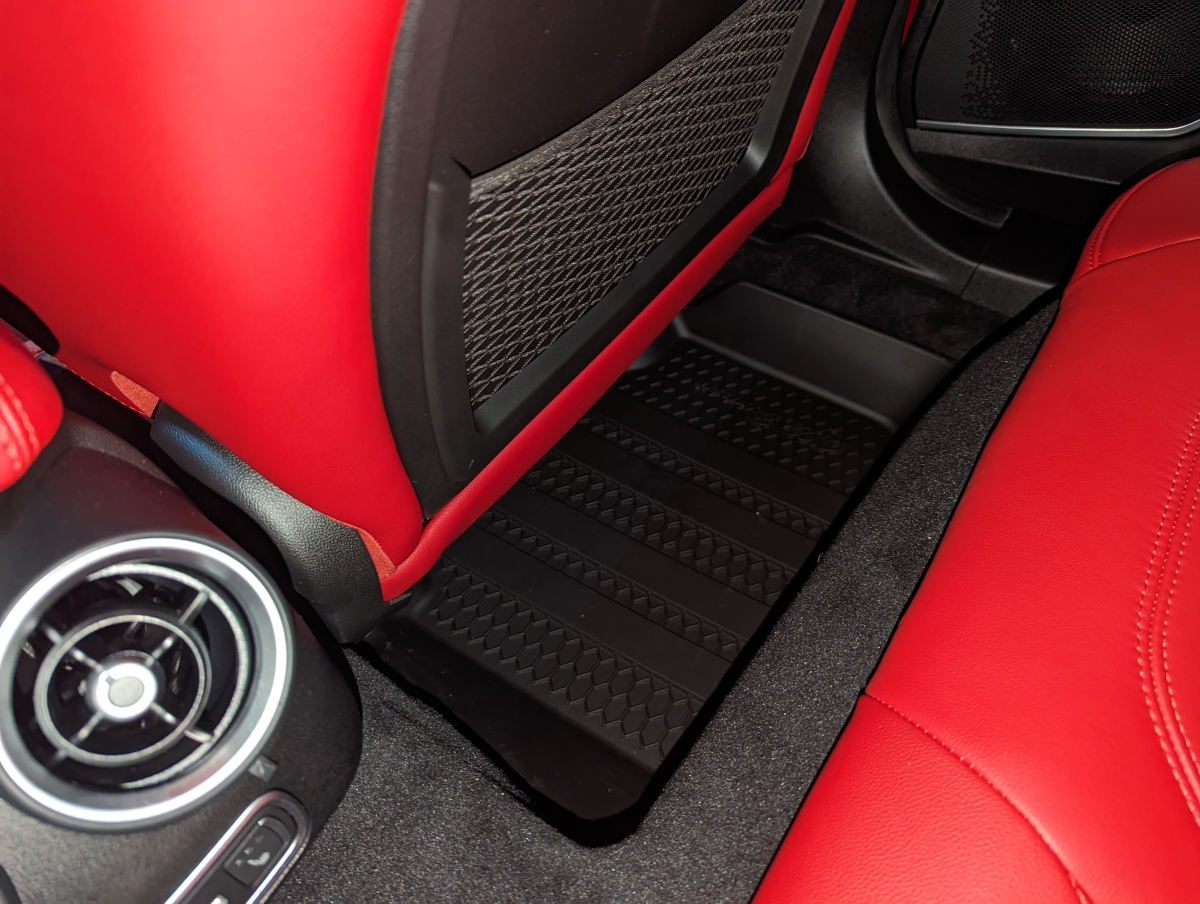

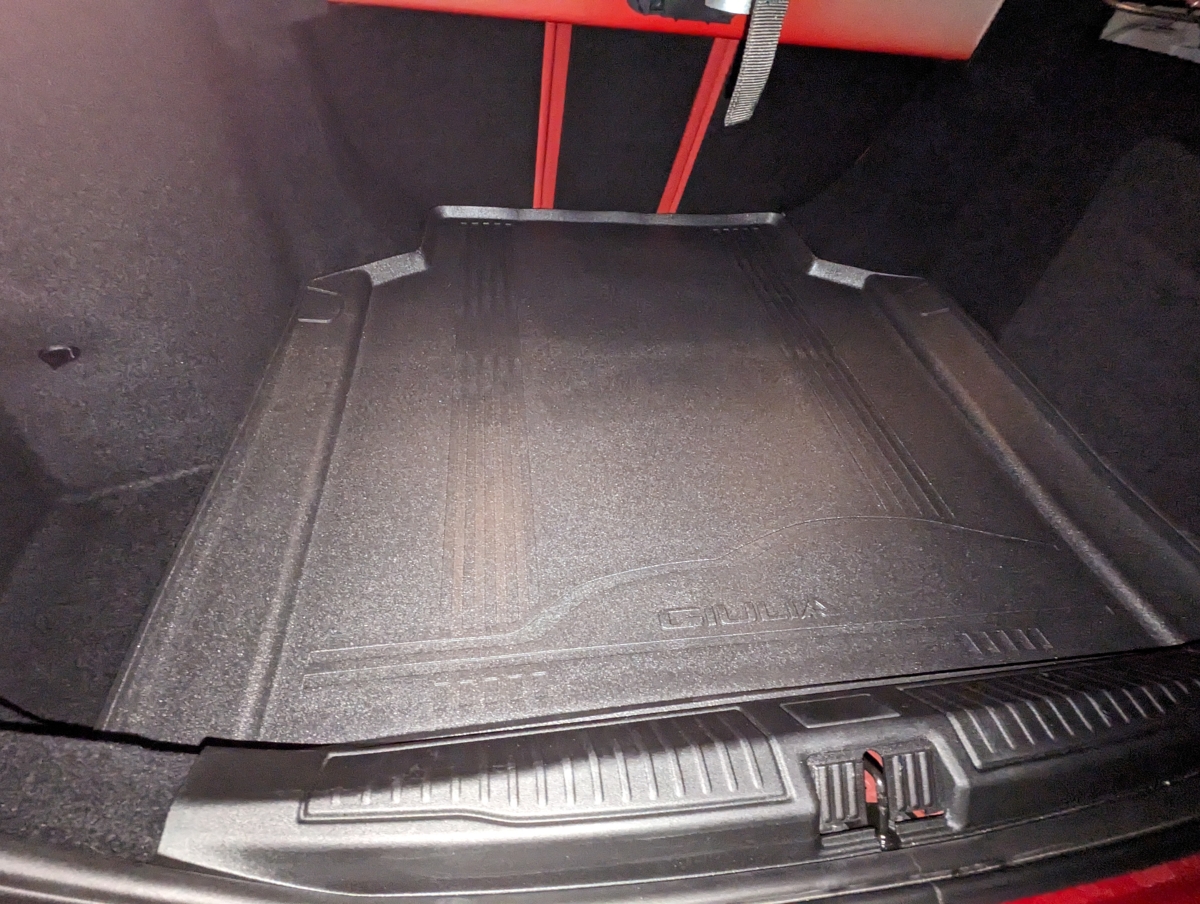

The front/rear mats were as expected but the cargo liner is made out of foam (not plastic or rubber)....I don't see it lasting long so it may get replaced with EA Cargo Liner or WeatherTech 40954 Cargo Liner.

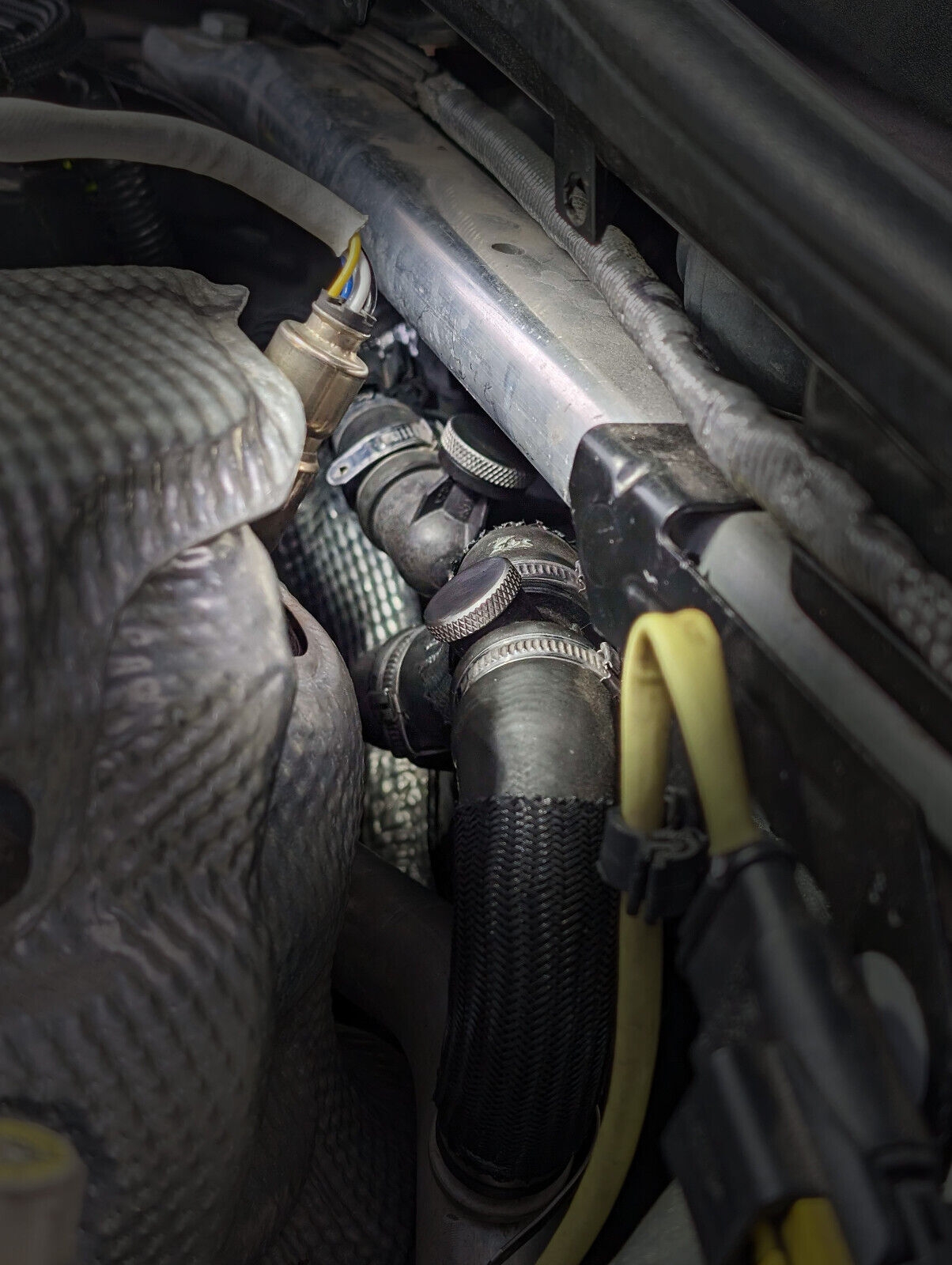

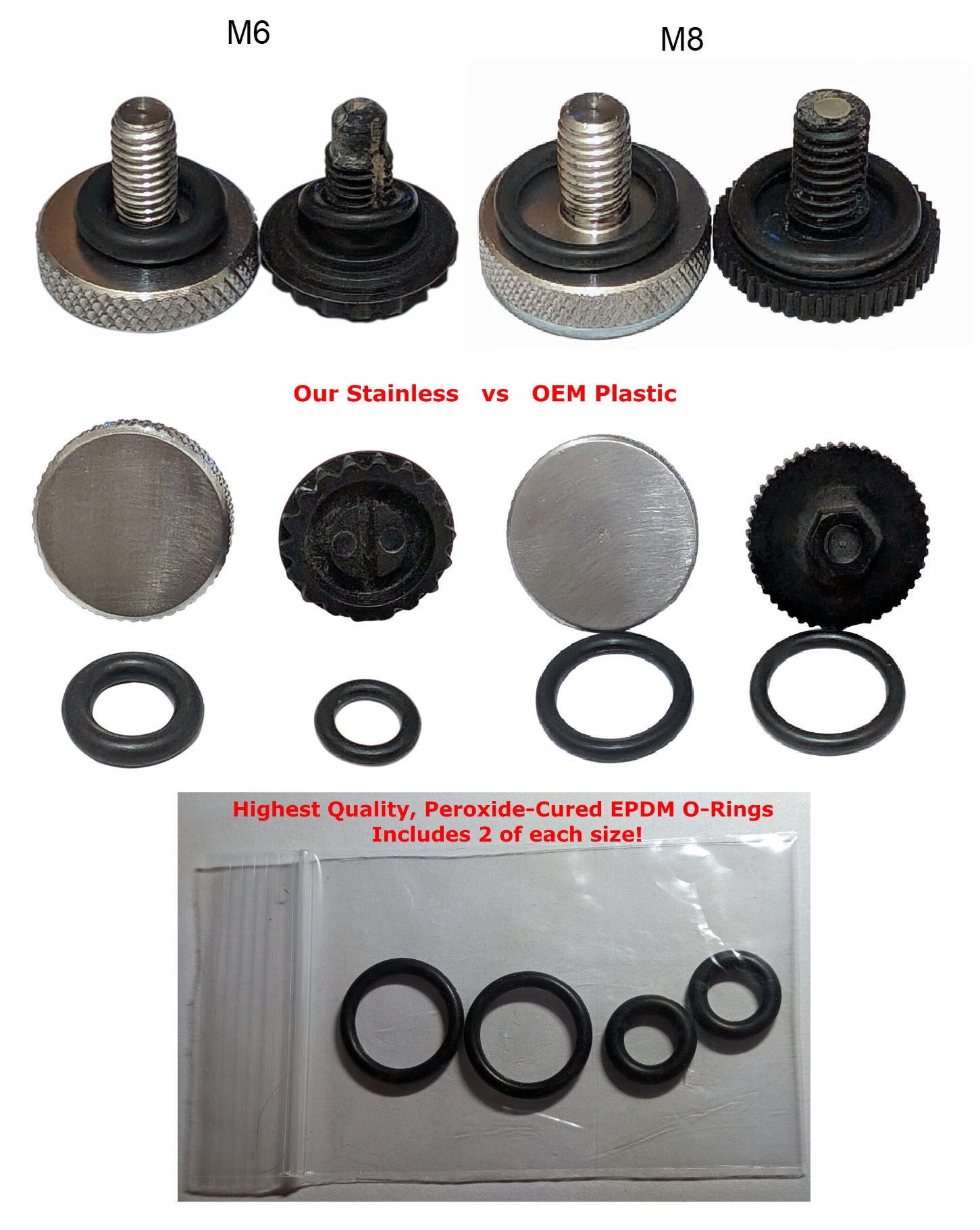

As a preventative measure, proactive replacement of the bleeder screws- OE Plastic to Aluminum from alfa_bits eBay store HERE, includes both M6 and M8 bleeder screws with extra EPDM o-ring seals.
GMS was first to market AFAIK, followed by others.
There is a Giulia thread HERE.









Oil Analysis performed by Blackstone Laboratories, DIY Services recorded on Carfax and My WWW Garage

Engine Oil Change at 1637 miles- OE Mopar MaxPro+ Synthetic 0W-30 and Mopar Oil Filter 4892339AB - No sample taken

Engine Oil Change at xxxx miles- OE Mopar MaxPro+ Synthetic 0W-30 and Mopar Oil Filter 4892339AB - No sample taken

Engine Oil Change at x miles- Amsoil Signature Series 0W-30 Synthetic Motor Oil and Mopar Oil Filter 4892339AB
