BMW e90 Sunroof Control Panel/Dome Light Removal and V1 Hardwire Installation BY e90post.com’s sfbmw



http://www.e90post.com/forums/showpost.php?p=166979&postcount=155

http://www.e90post.com/forums/showpost.php?p=166979&postcount=156

http://www.e90post.com/forums/showpost.php?p=166979&postcount=157

http://www.e90post.com/forums/showpost.php?p=166979&postcount=158

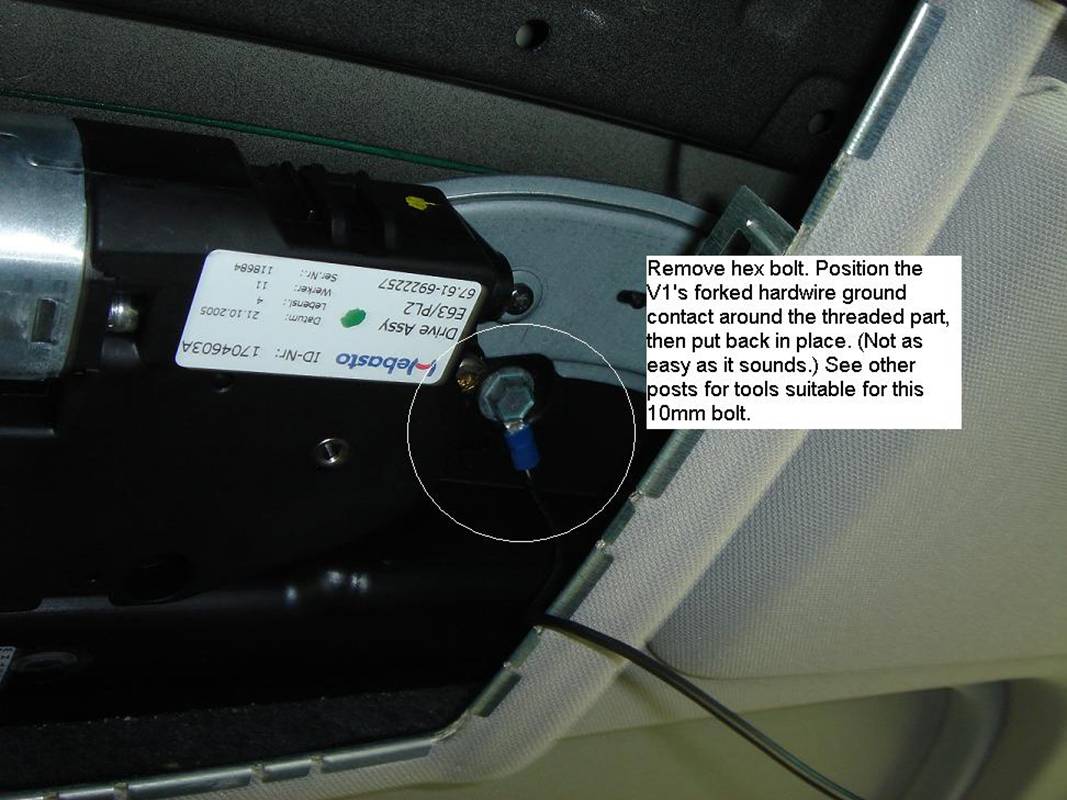

(Note by Bill: For grounding point I used the same 10mm bolt but on the left side (picture below shows right side location), it was easier to access with a 1/4” ratchet and 10 mm socket)
