  M7 New Product Release: Aerogel EX

Join Date: Jul 2003

Location: los angeles

Posts: 1,587

Gallery

M7...... New Product


Only from the minds of M7 comes another innovative new product . . . and it is available now.

As some of you know, M7 has taken the heat shield concept to a new level
with the DFIC Aerogel Heat Shield System. We have now spun off the idea
and created the M7 Aerogel EX.

The goal was to cut down on the ever destructive heat soak in the engine compartment, without adding complex, hard to install parts that will eventually break down or fail in some way.

We decided to bite the bullet.. and we invested in some serious data logging equipment and a Thermal Imaging Camera that will give us and you the customer visual feedback to the thermal heat load under the hood.

The testing showed some amazing results. The data logging revealed an
amazing 65.8 Delta in regular driving (both runs were identical) with some very small deviations in speed and the number of stop lights we had to stop for. The run was executed with mixed driving on the freeway at high rpm to generate as much heat as possible and stop and go traffic on surface streets.

Something else to remember is that the test was done with an M7 DFIC intercooler that will flush more cool air in to the engine compartment
then a typical stock (or stock-style aftermarket unit) making the numbers
even more impressive.

The coolant reservoir and the steering pump reservoir stays much cooler, along with the peripheral areas in the engine bay (including intercooler). Bottomline, the entire engine compartment remains much cooler during a driving cycle.

We have an initial production run available starting Wednesday 3/21. If you would like to order, please call 562-608-8123.

Super easy do it your self install.....
The M7 Aerogel EX fits on top of the excisting aluminum heat shield (above the exhaust manifold/header).

Price: $129 includes fasteners

Peter
M7 Tuning

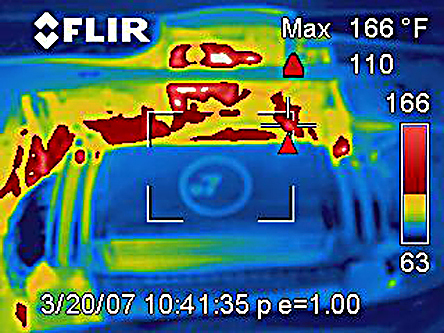

Frontal view with Aerogel EX

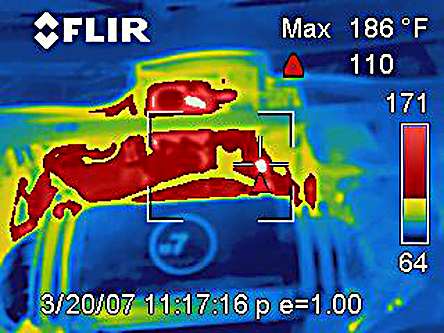

Frontal view without Aerogel EX

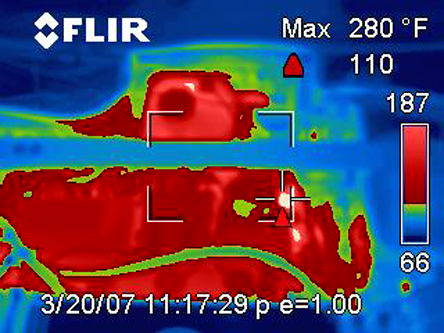

Straight down facing exhaust heat shield ( No Aerogel EX)

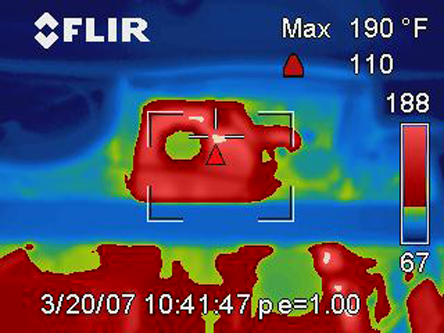

Straight down facing exhaust heat shield (with Aerogel EX)

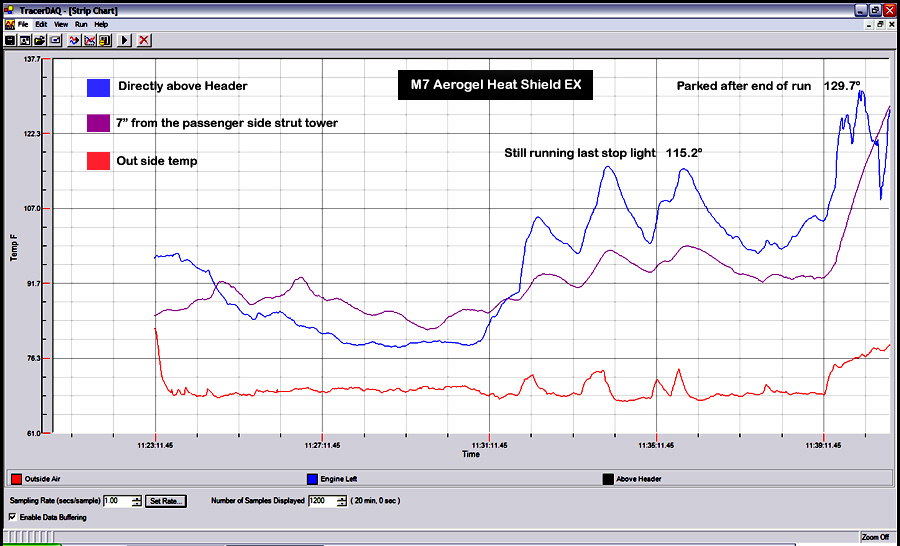

Data logging 1 sample per second (With Aerogel EX)

M7 Aerogel EX Heat Shield

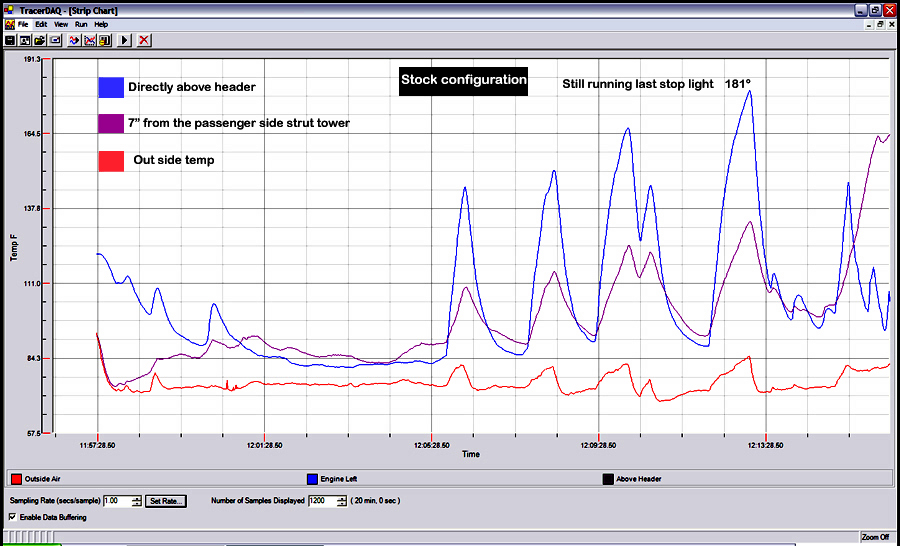

Data logging 1 sample per second (No Aerogel EX)
